PRODUCTS CENTER

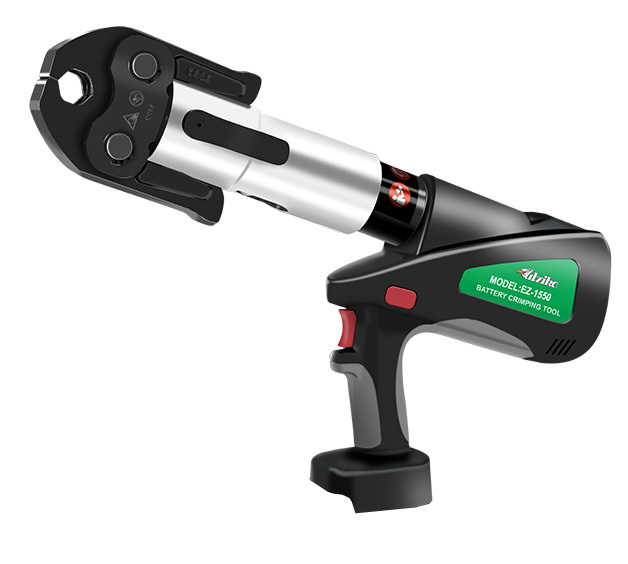

BATTERY PIPE PRESSING TOOL
EZ-1550
Category：
Price：
￥
1950
$
270
€
250
Price：
￥
1950
TECHNICAL DATA
Crimping force:32KN
Stroke:35mm
Crimping range:DN15-DN50 Stainless steel pipe
Cutting/charge:350times(DN20 Stainless steel pipe)
Crimping cycle:5-8S(depend on the size of cable)
Voltage:18V
Capacity:5.0Ah
Charging time:2hours
Package:plastic box
Inventory:
2323232
Details

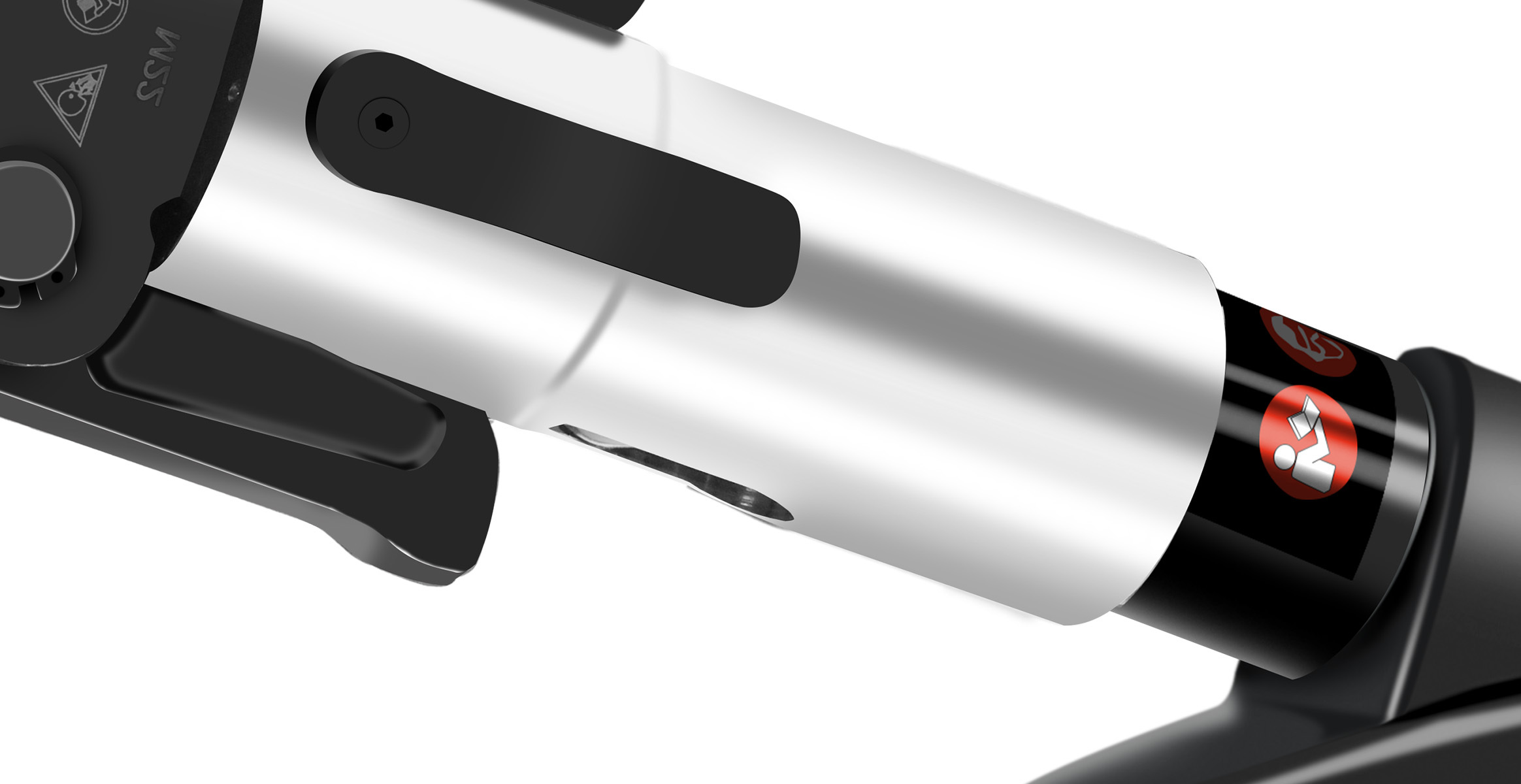

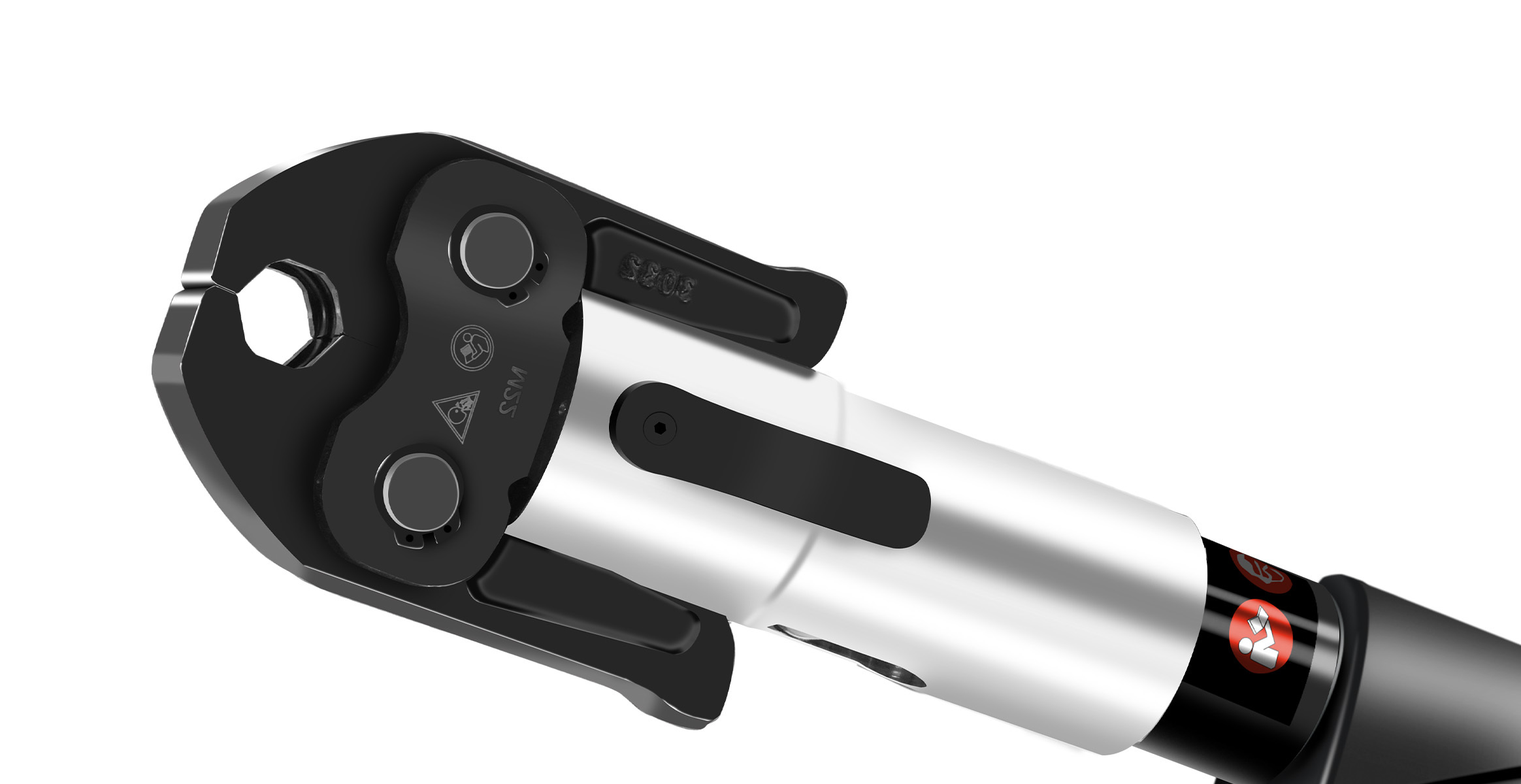

Innovative collet
1.Increase the mold guide, the mold will not shake left and right. 2.Combined with the overall quenching technology, the pliers head is strong and will not break.

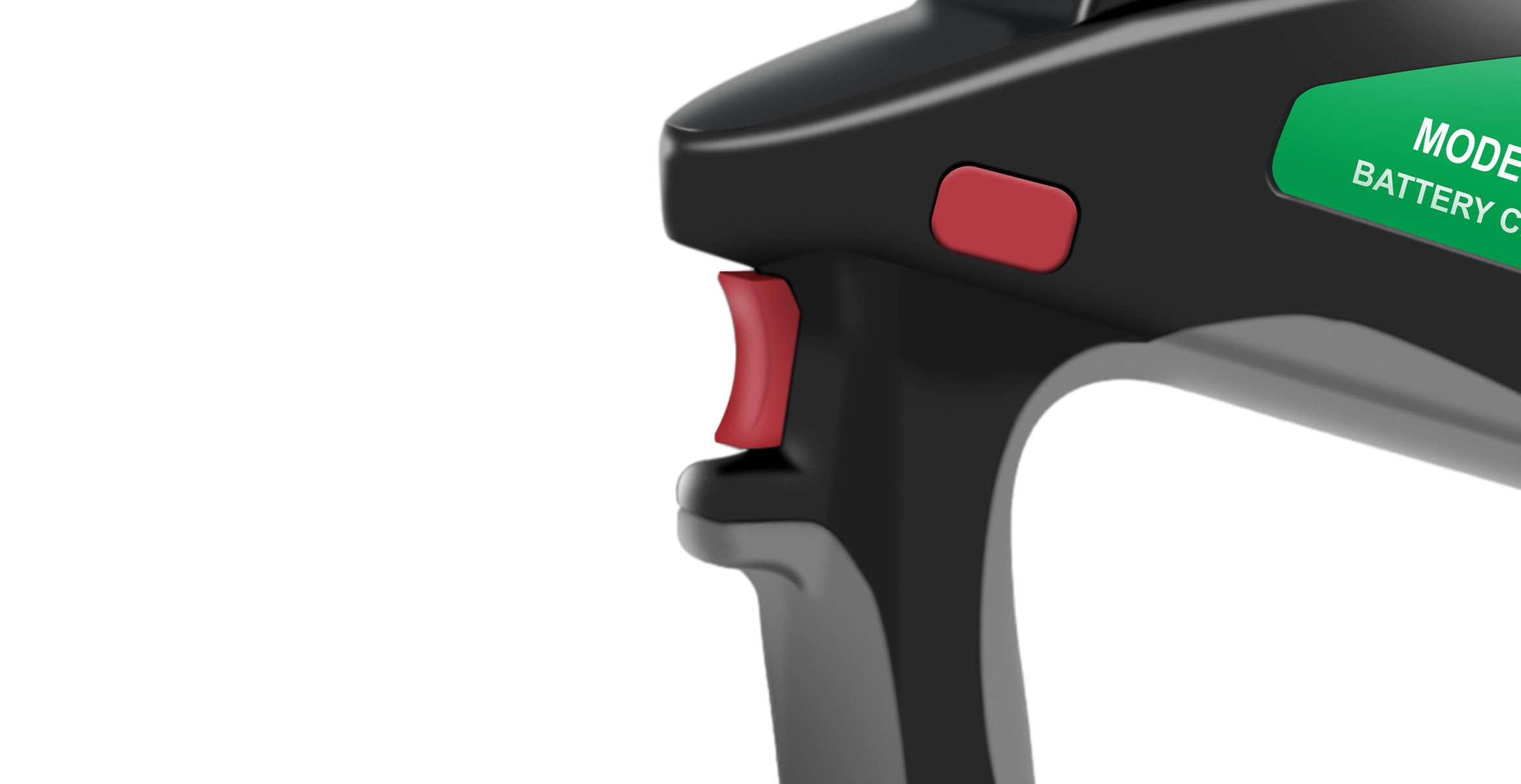

Start key
Long press to use, quick and easy
Reset key
Long press to use, quick and easy

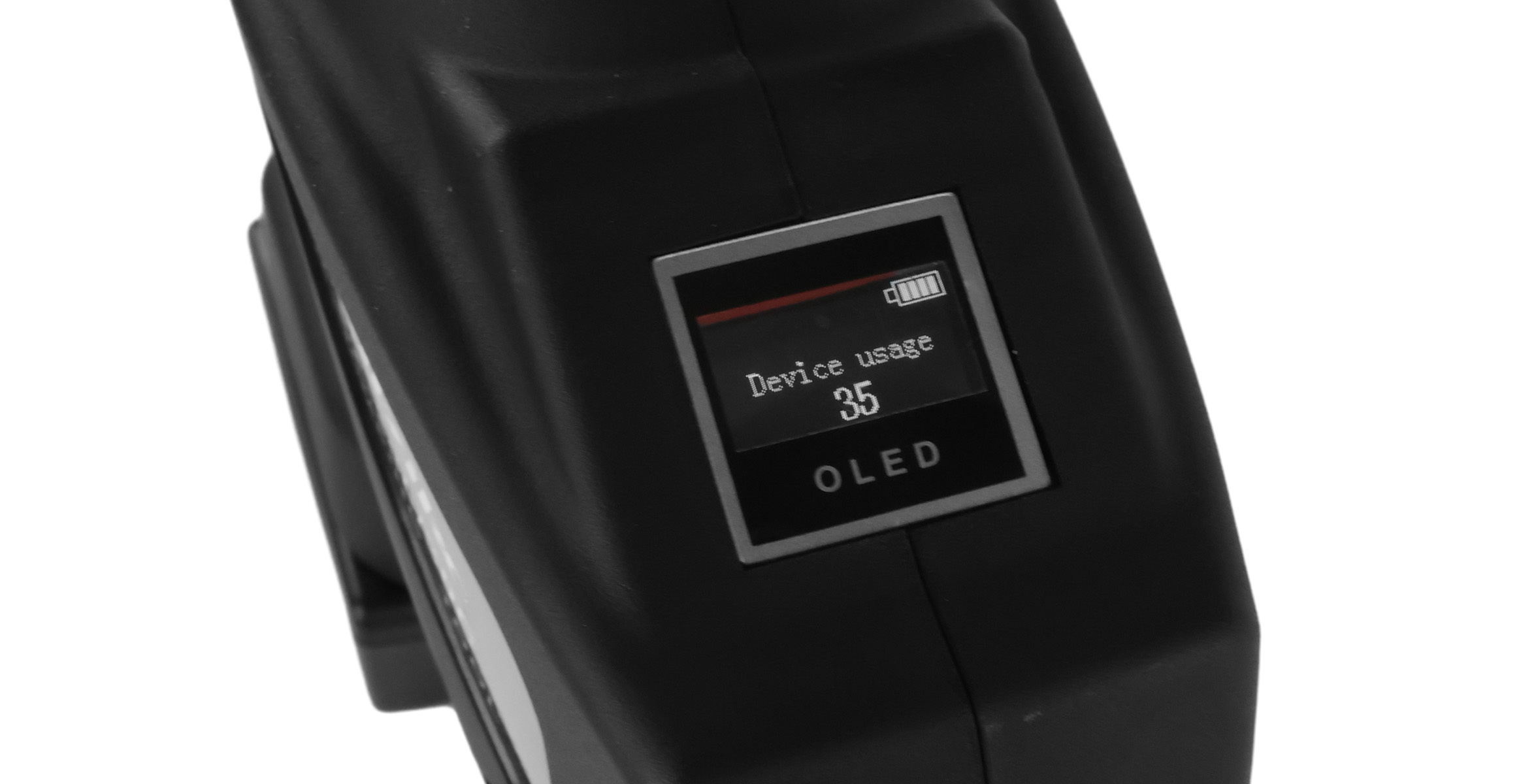

Clear LED display
The battery level of the tool is displayed accurately

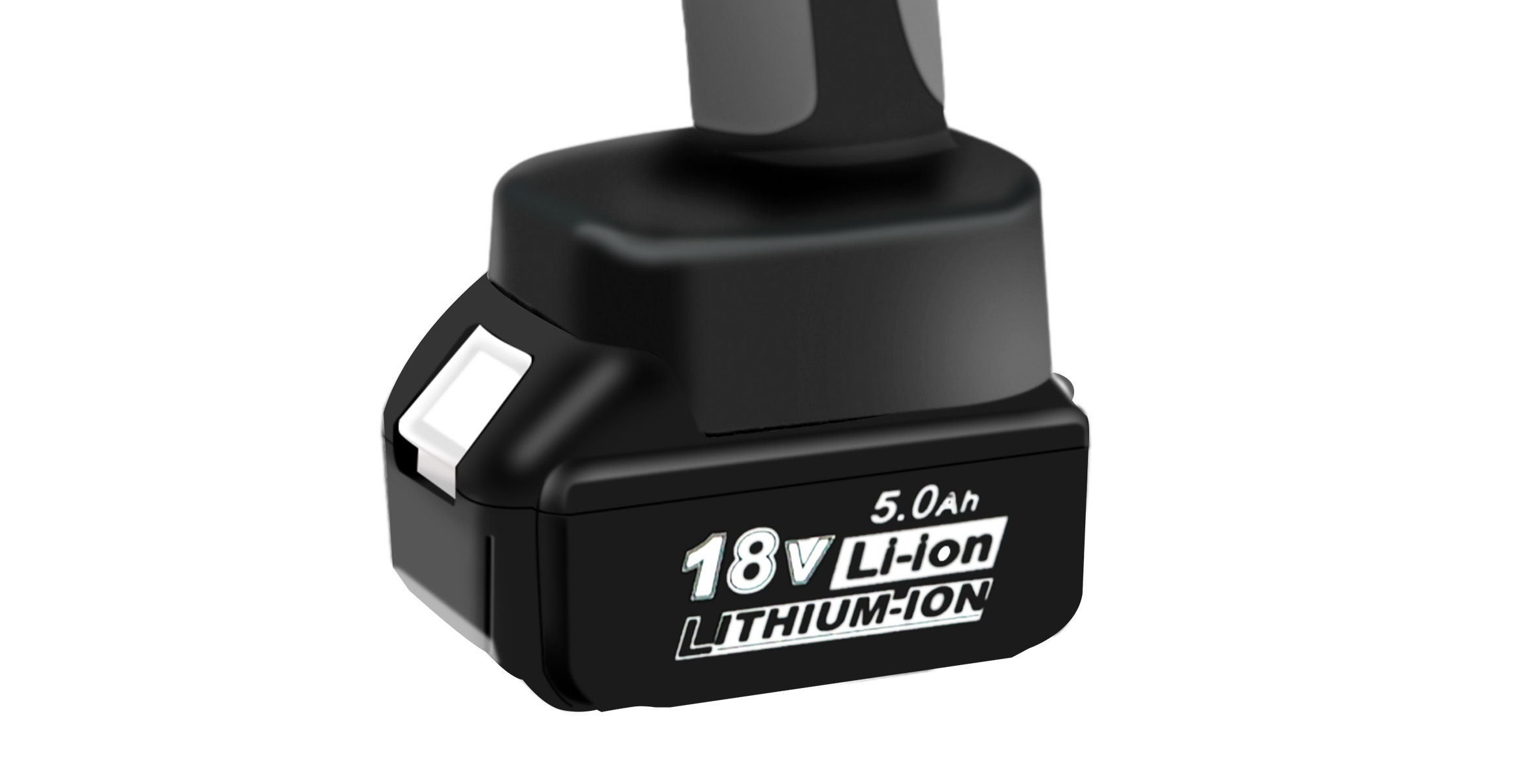

Battery mounting
Portable installation method, plug in and run the tool, easy

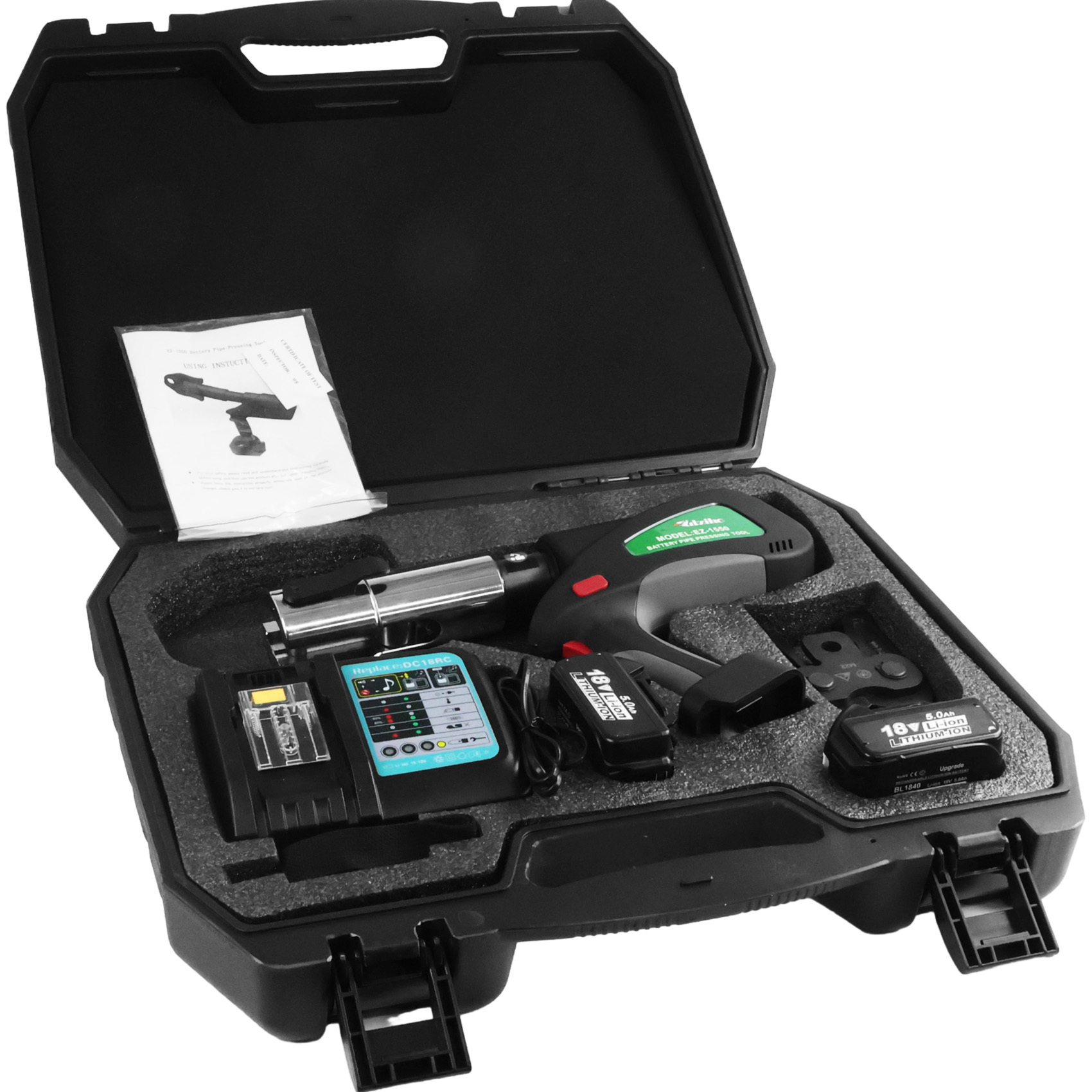

Product Accessories
 |
 |
 |
|
 |

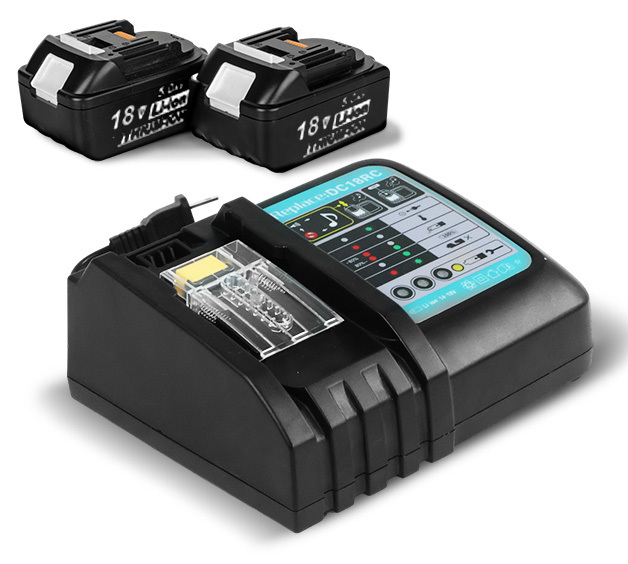

| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing element: | 1set |

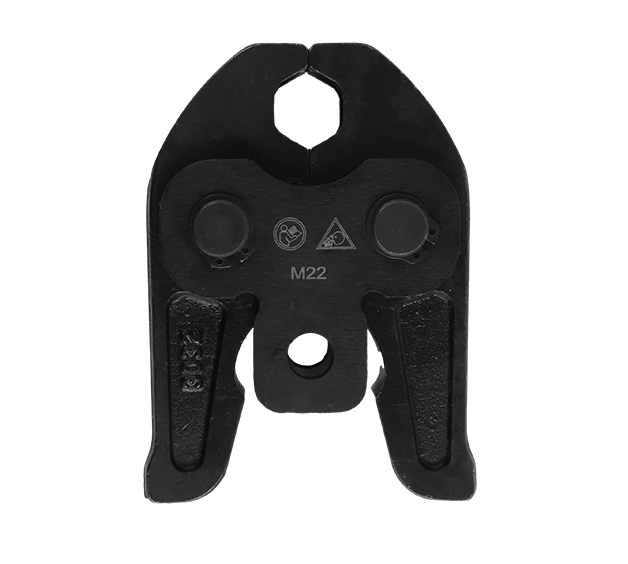

Mould
undefined
Installation Process

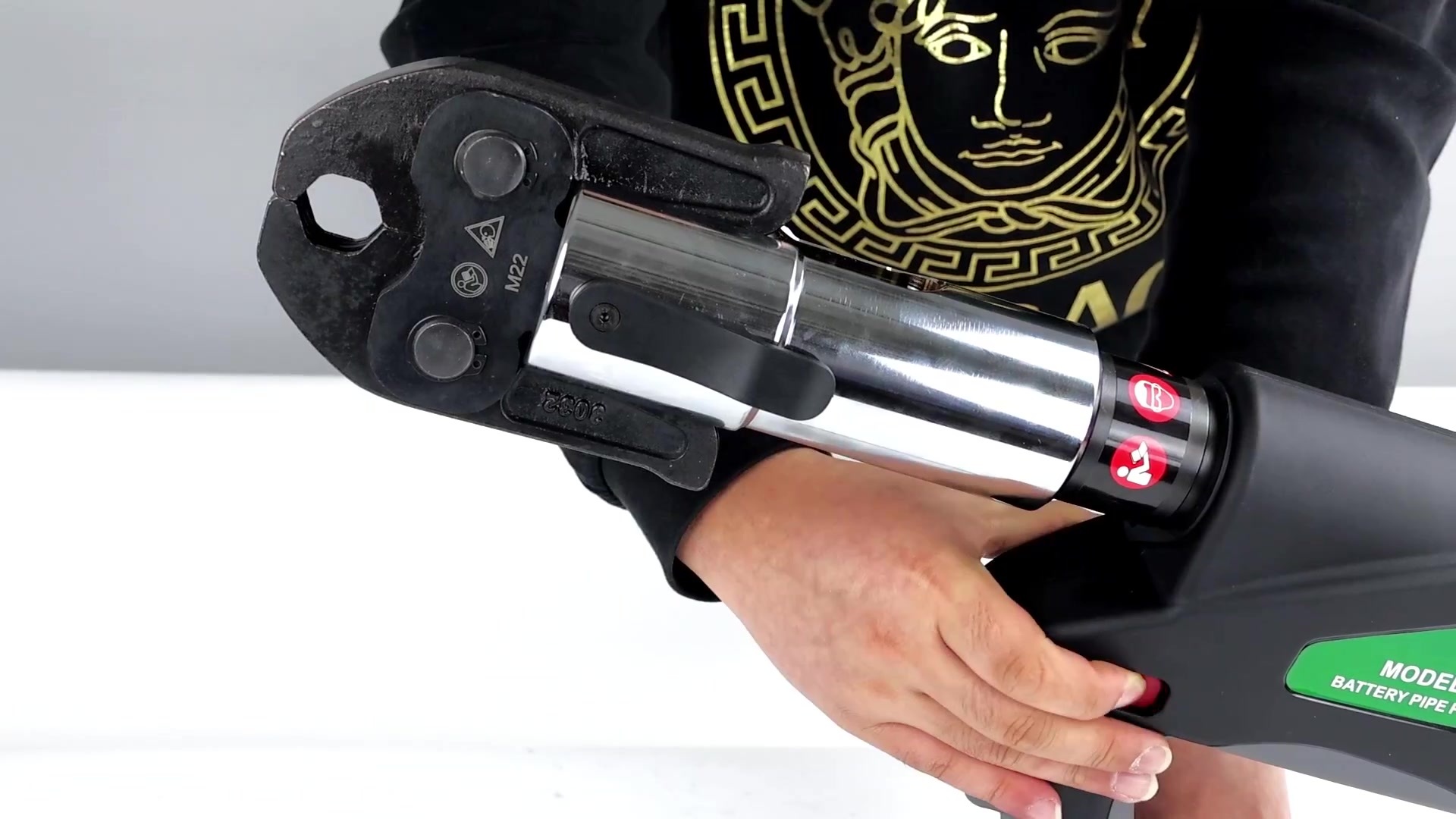

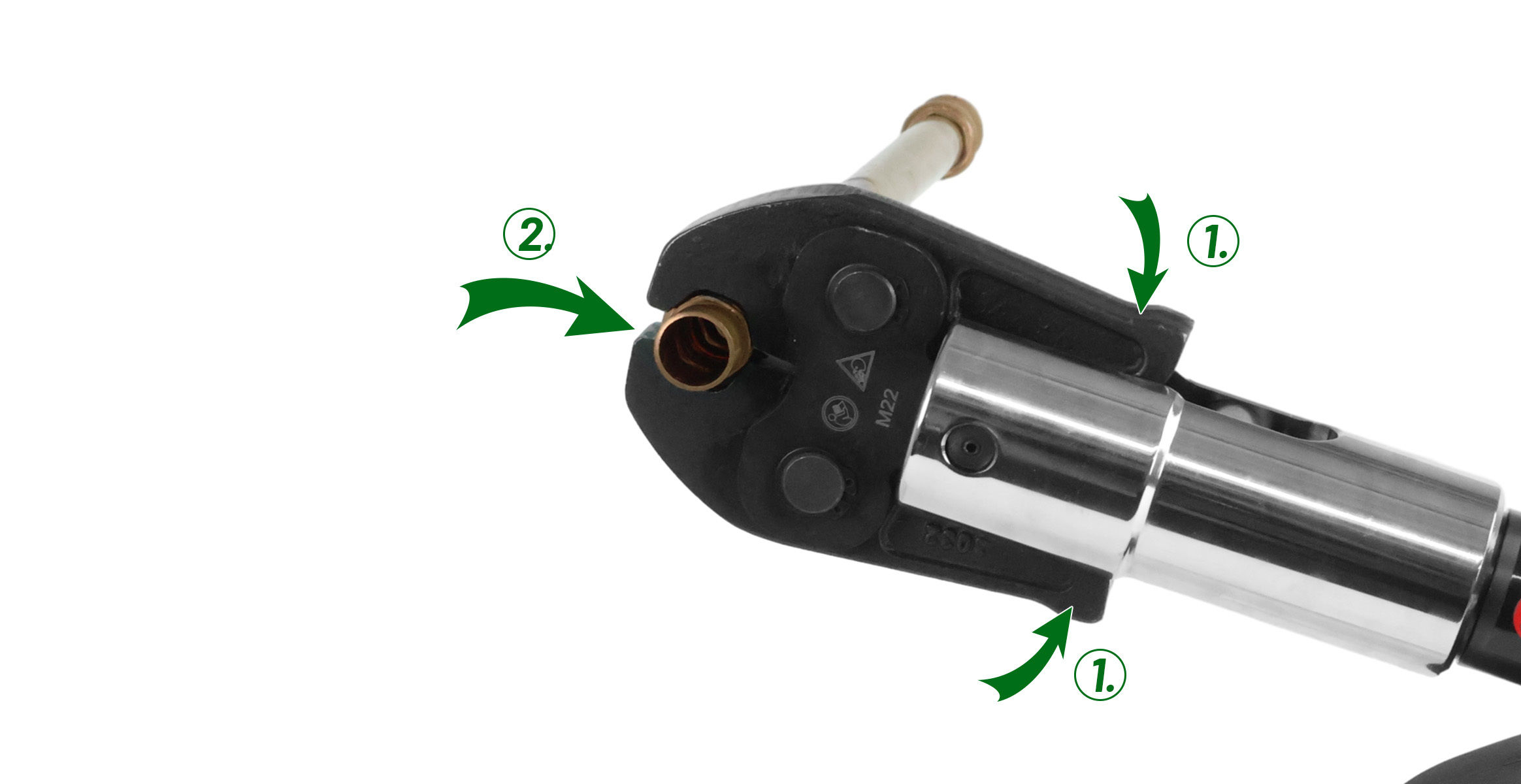

Step 1
Put in the Copper head

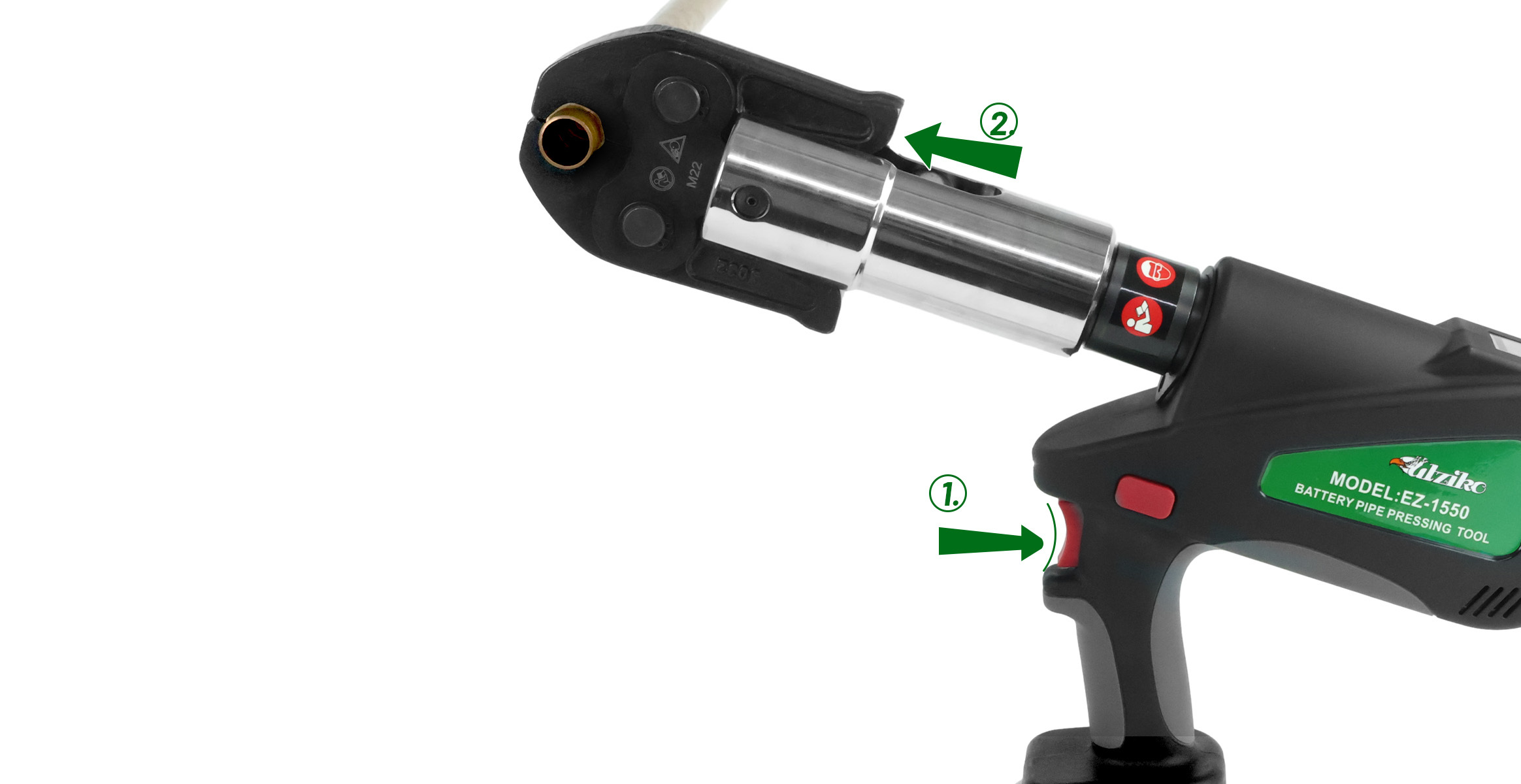

Step 2
Fix the Copper head and press and hold the start button to run

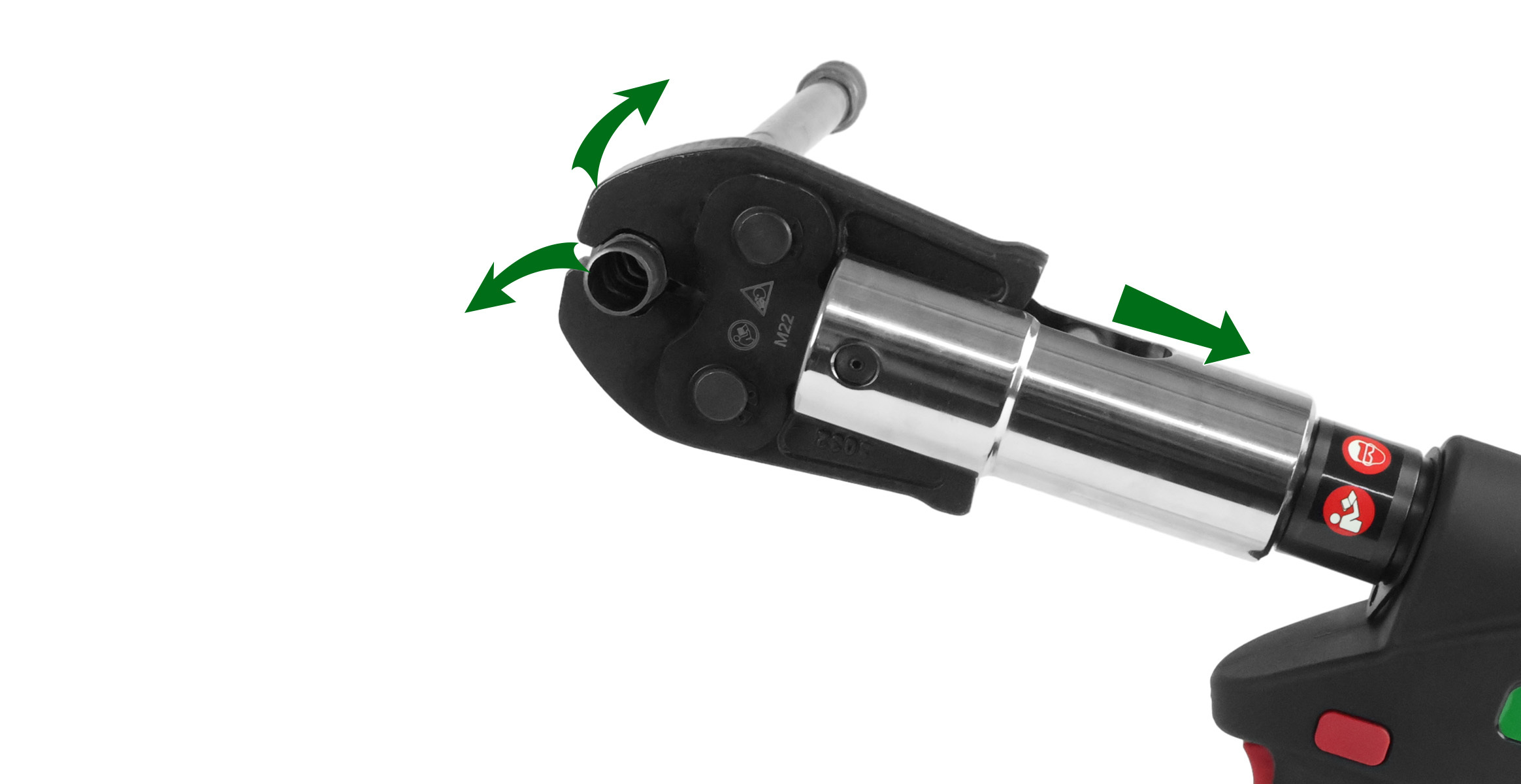

Step 3
Press and hold the reset button to remove the Copper head
图片名称
图片名称
图片名称
