BATTERY POWERED CRIMPING TOOLS

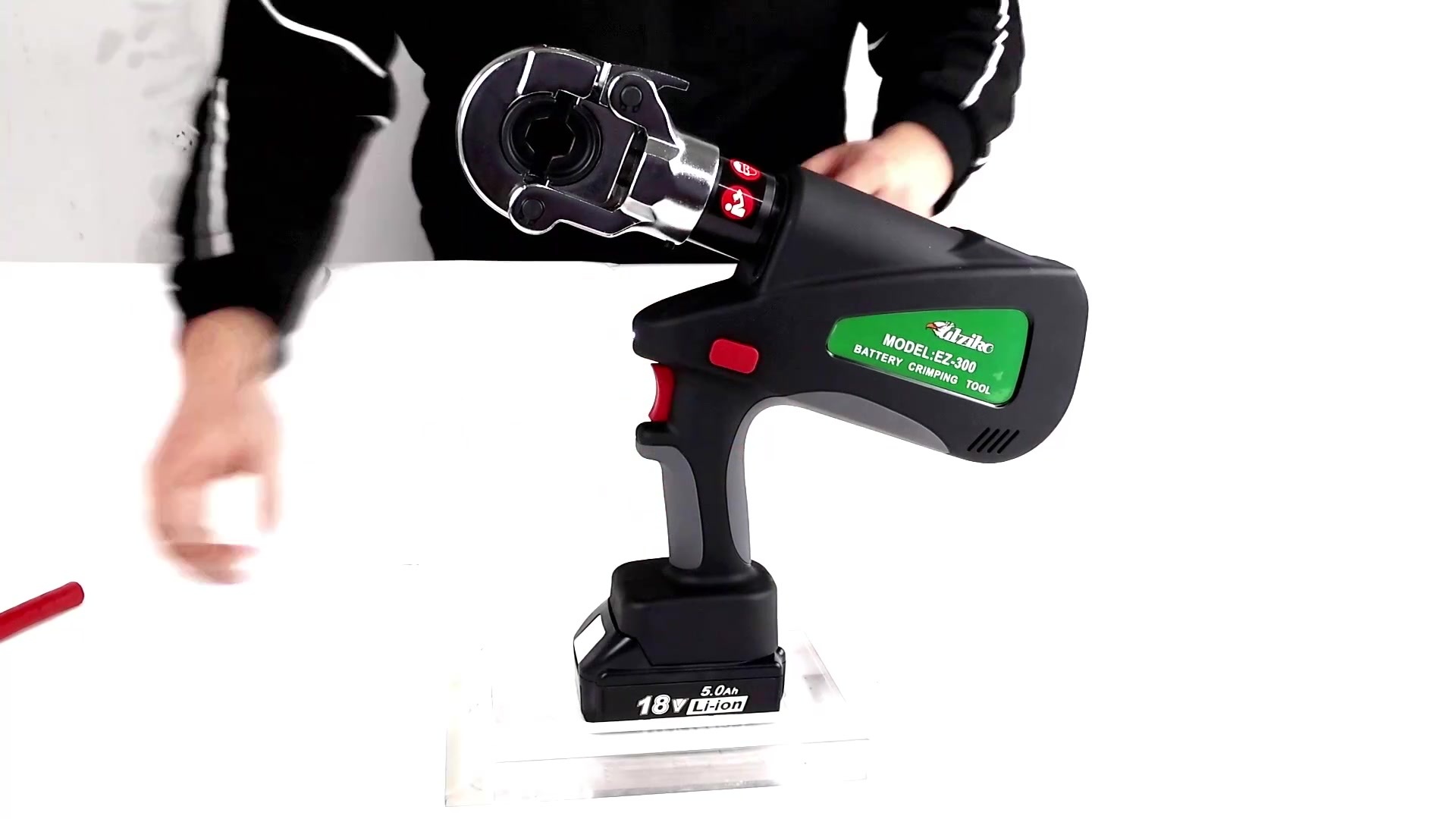

EZ-300
Category：
Price：
￥
1500
$
211
€
192
Price：
￥
1500
TECHNICAL DATA
Crimping force:60KN
Crimping range:16-300m²
Cutting/charge:320times(Cu 150mm²)
Crimping cycle:3-6S(depend on the size of cable)
Voltage:18V
Capacity:5.0Ah
Charging time:2hours
Inventory:
111110
Details

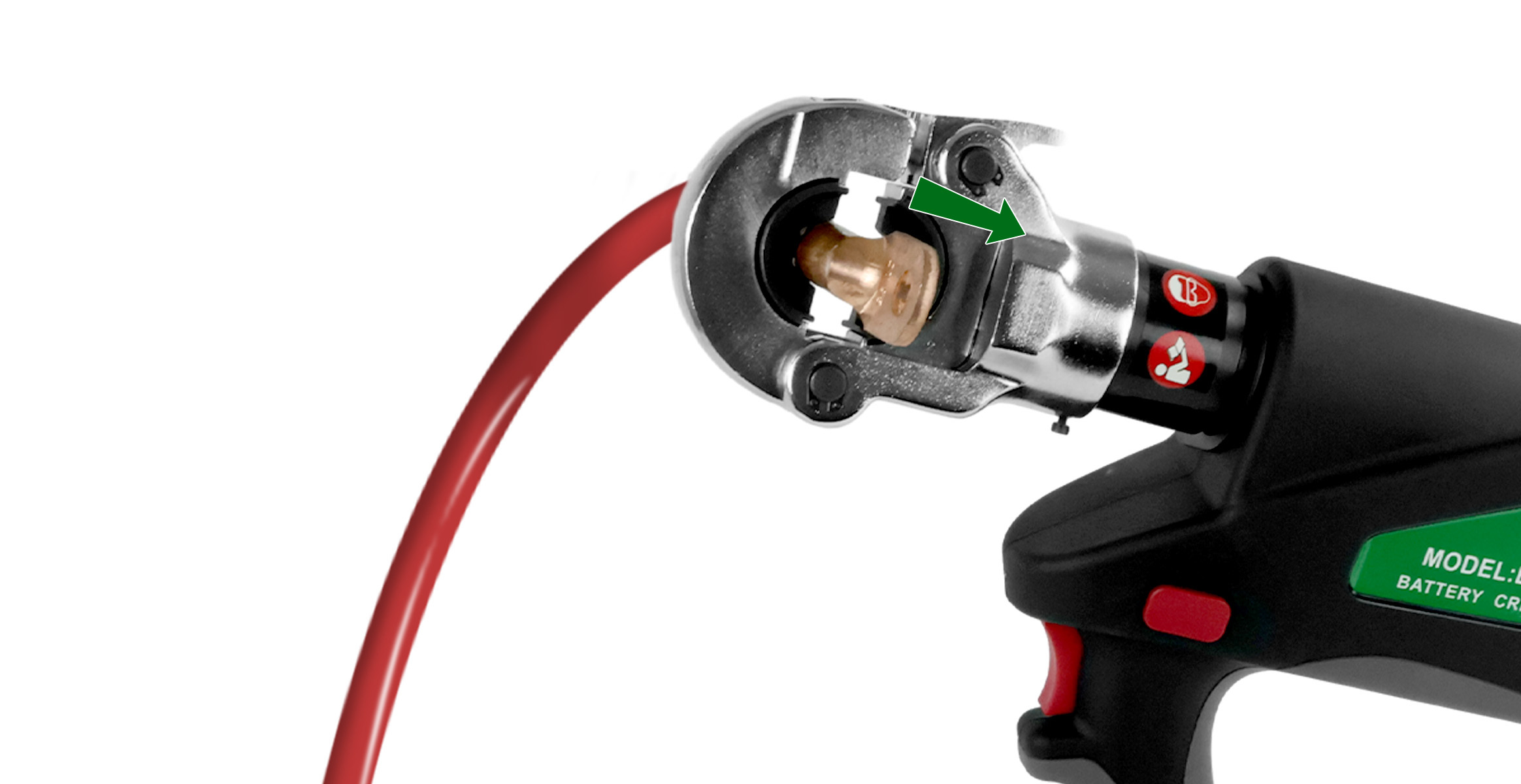

Innovative collet
1.Increase the mold guide, the mold will not shake left and right. 2.Combined with the overall quenching technology, the pliers head is strong and will not break.

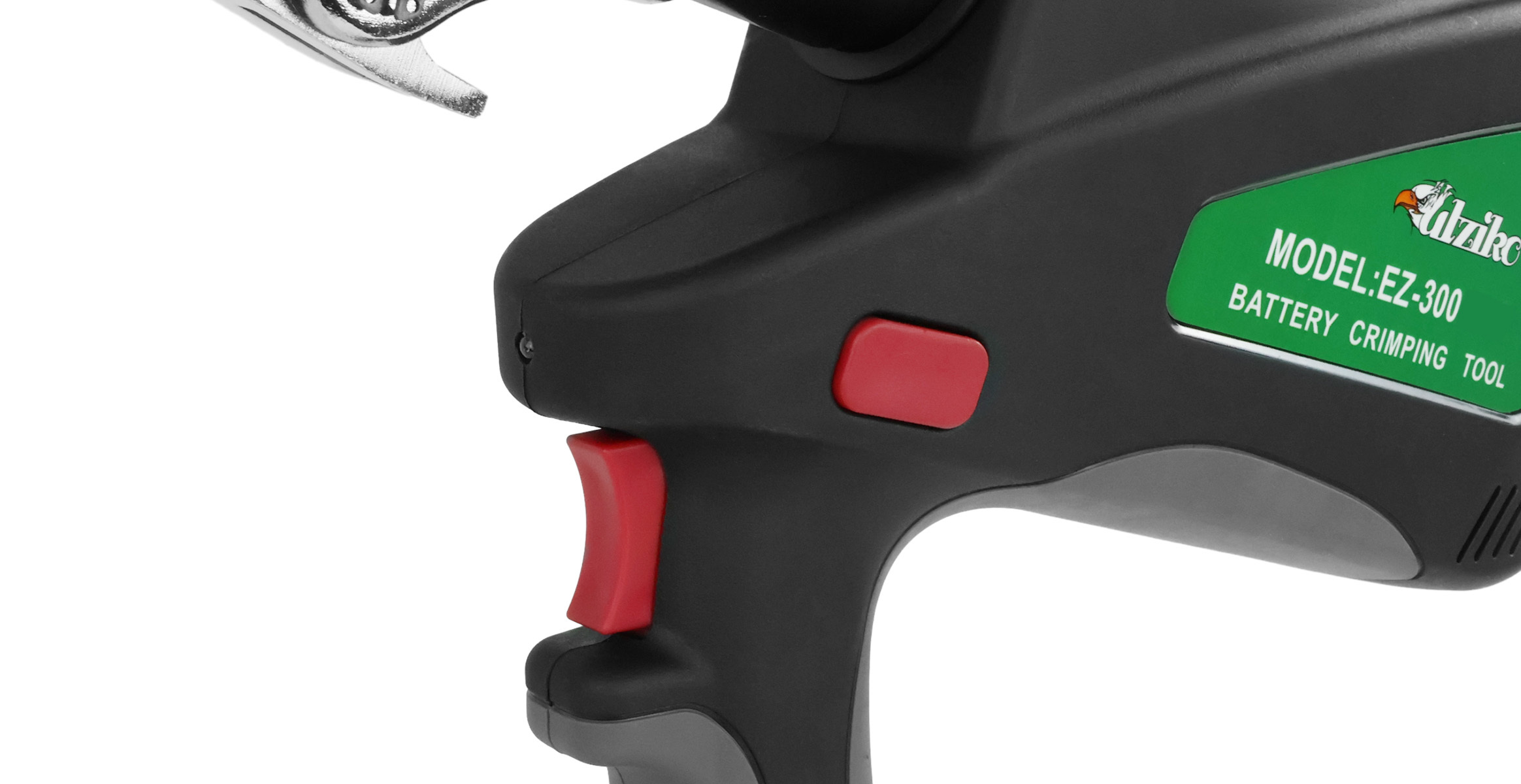

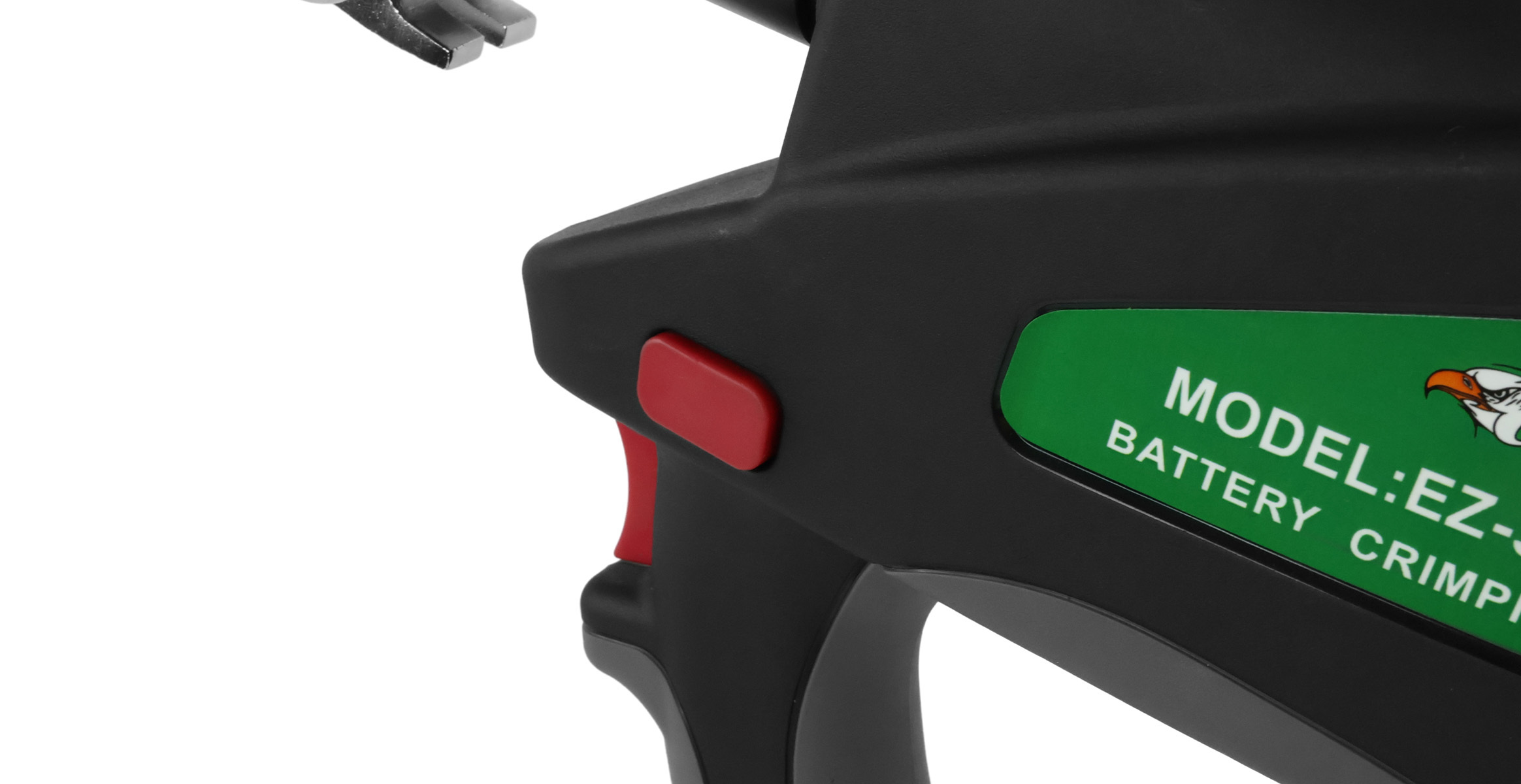

Start key
Long press to use, quick and easy
Reset key
Long press to use, quick and easy
Clear LED display
The battery level of the tool is displayed accurately
Battery mounting
Portable installation method, plug in and run the tool, easy

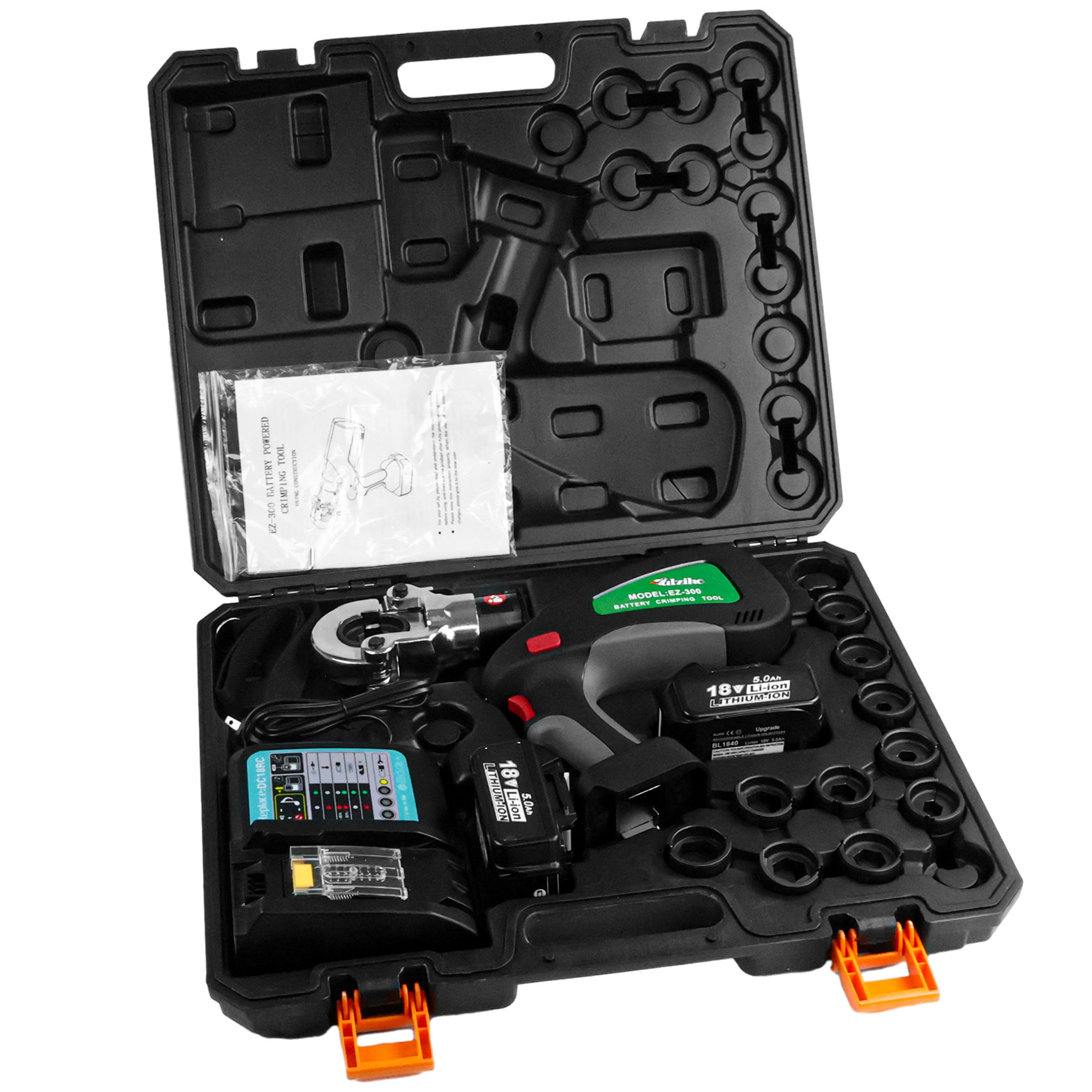

Product Accessories
 |
 |
 |
|
 |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300mm2 |

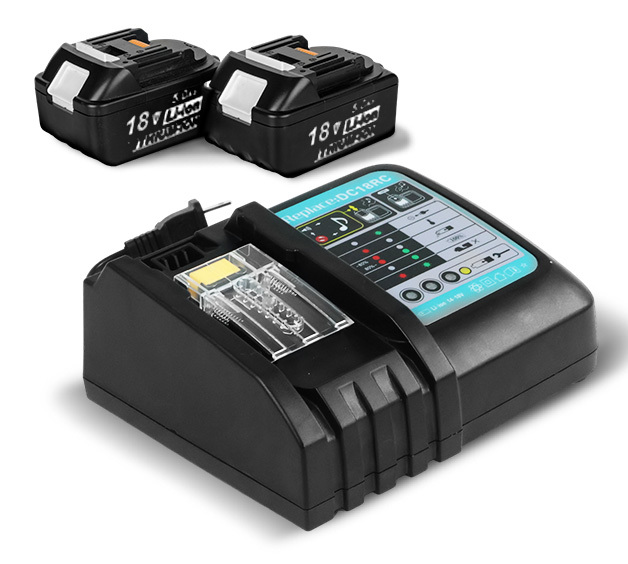

| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing element: | 1set |

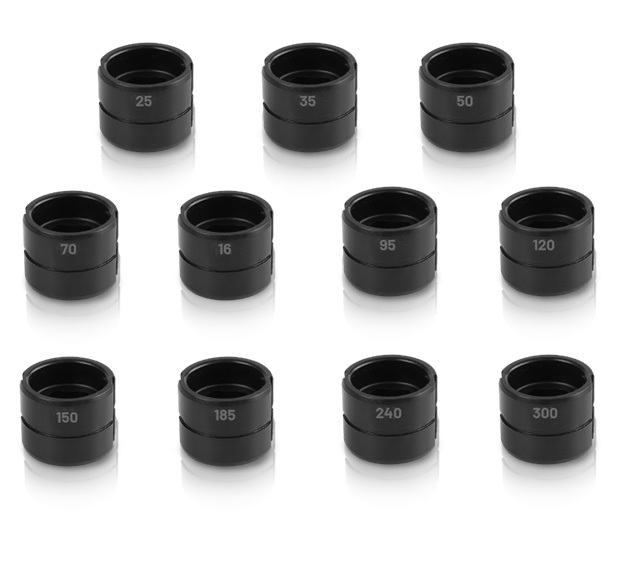

Mould
16
35
50
70
95
120
150
185
240
300

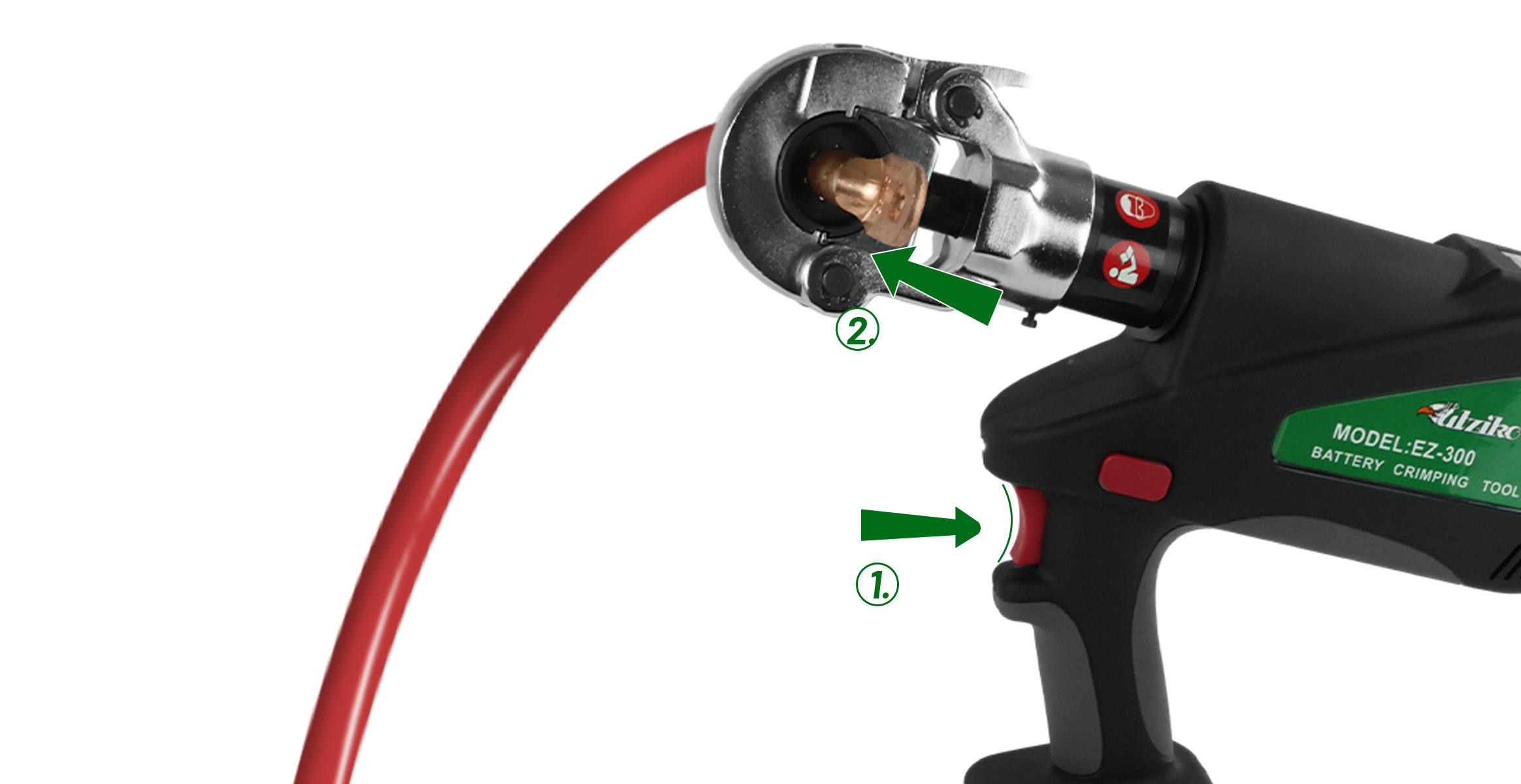

Installation Process
Step 1
Put in the abrasive
Step 2
Put in the Copper head
Step 3

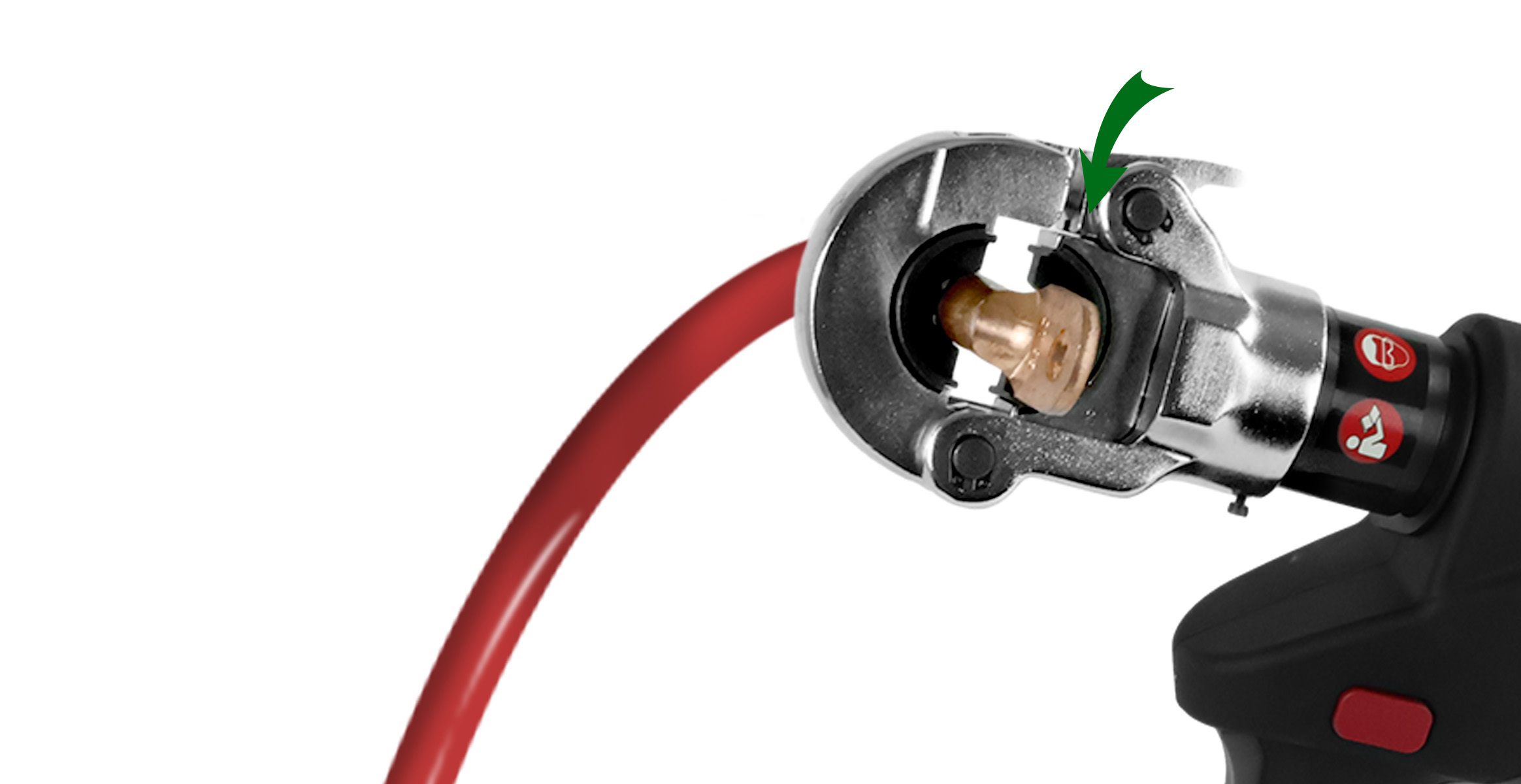

Fix the Copper head and press and hold the start button to run
Step 4
Press and hold the reset button to remove the Copper head
图片名称
图片名称
图片名称
图片名称

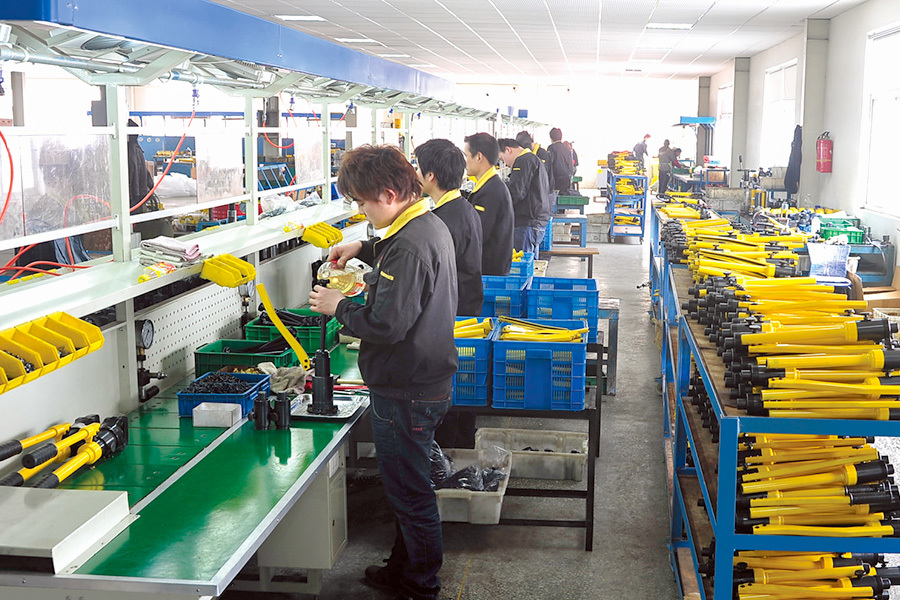

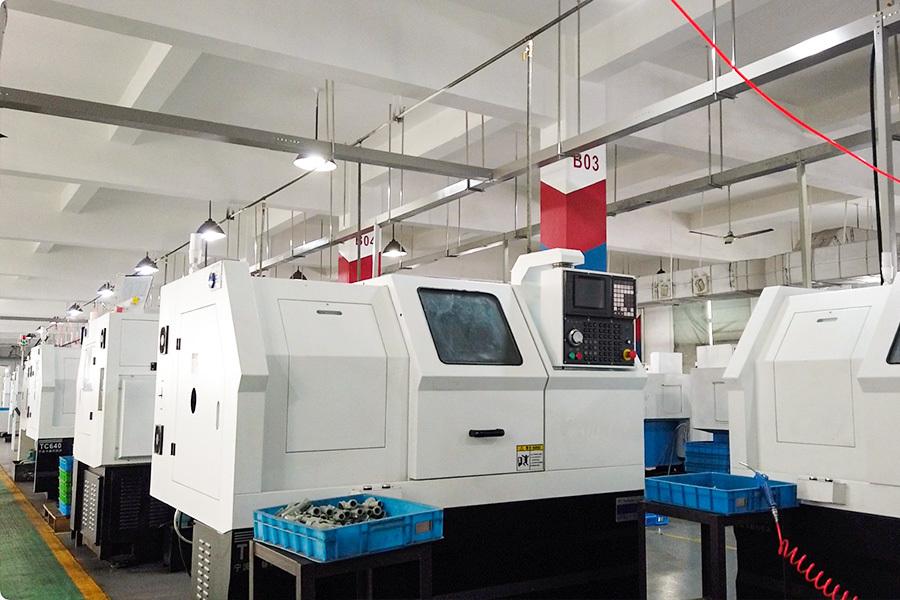

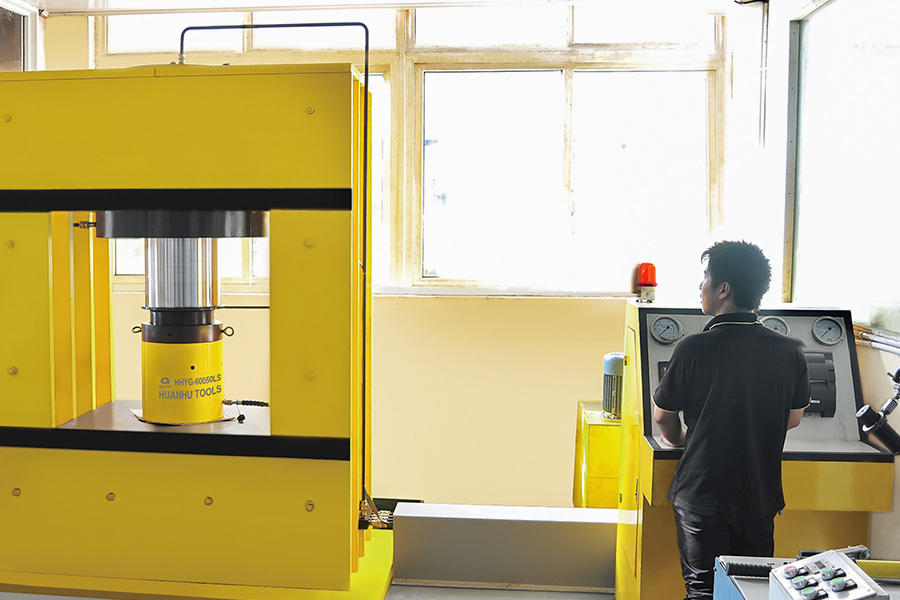

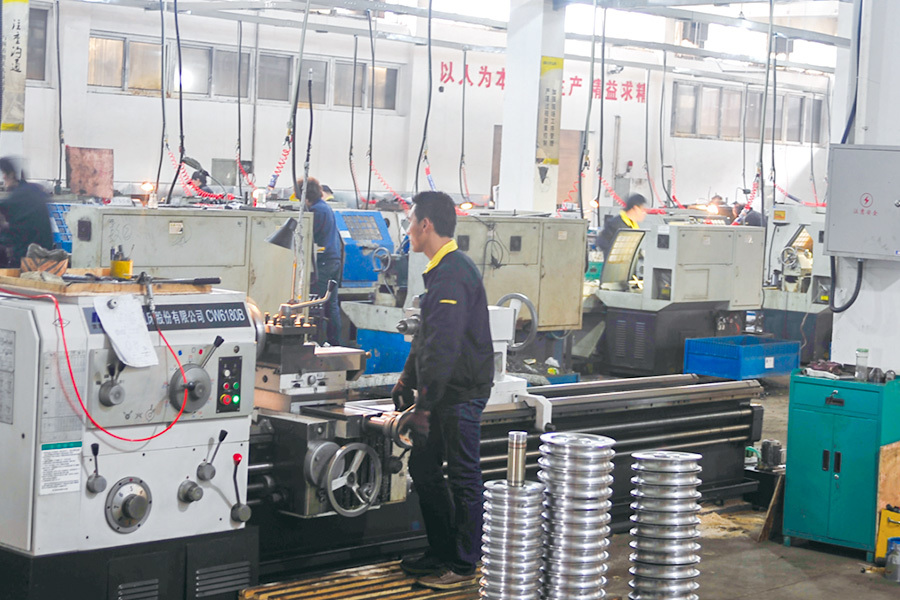

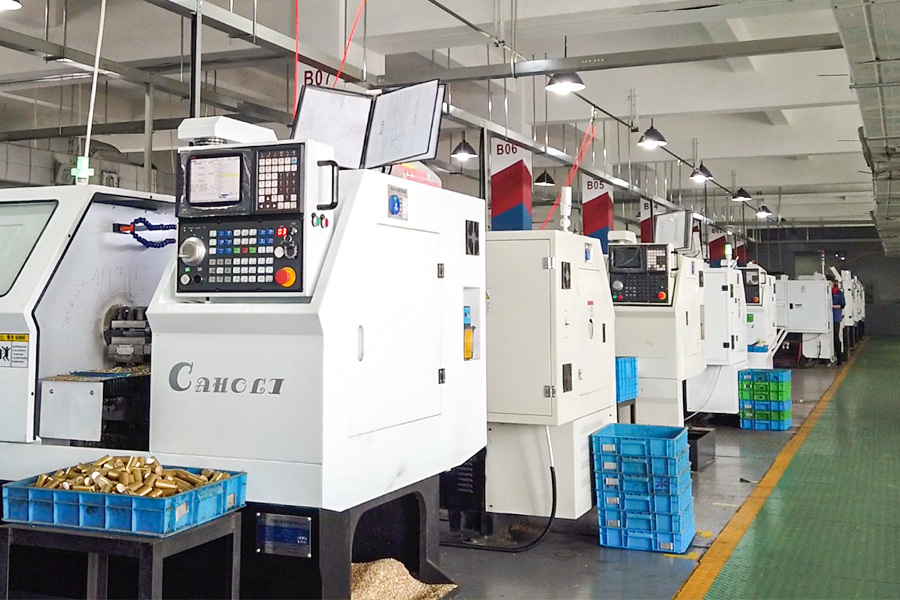

Workshop
