INTEGRAL HYDRAULIC CRIMPING TOOL
YQK-120
Category：
Price：
￥
135
$
18
€
17
Price：
￥
135
TECHNICAL DATA
Crimping range:10~120mm²(12AWG-2/0AWG)
Crimping force:100KN
Crimpingtype:hexagon crimping
Stroke:13mm
Length:approx 310mm
Weight:approx 2.80kg
Working temperature:-20°C~40°C
Inventory:
Details

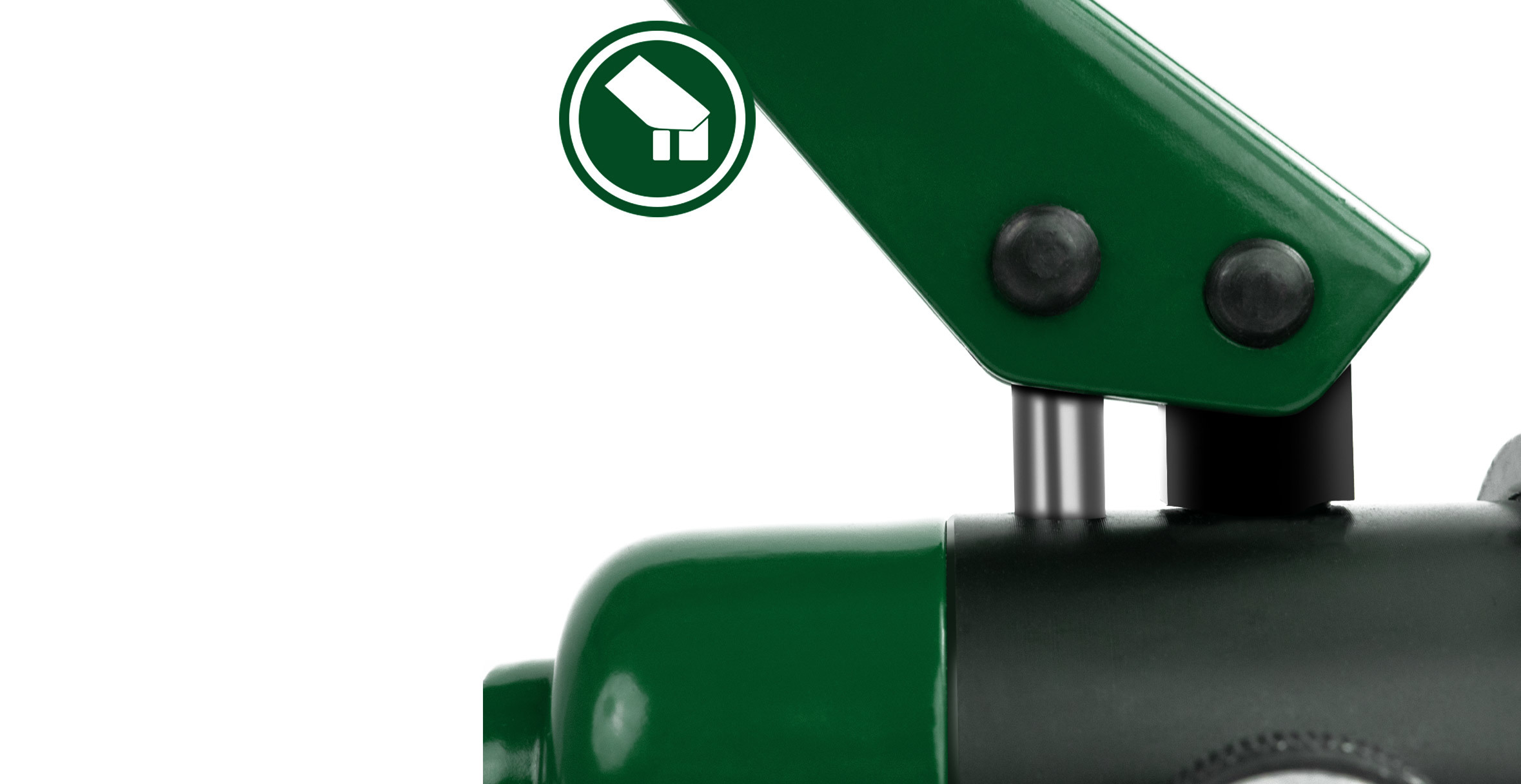

INNOVATIVE HANDLE RETURN SPRING
One hand can operate both handles. Compared to products without return springs, it is easier to operate the handle with one hand, and one person can complete the crimping job independently.

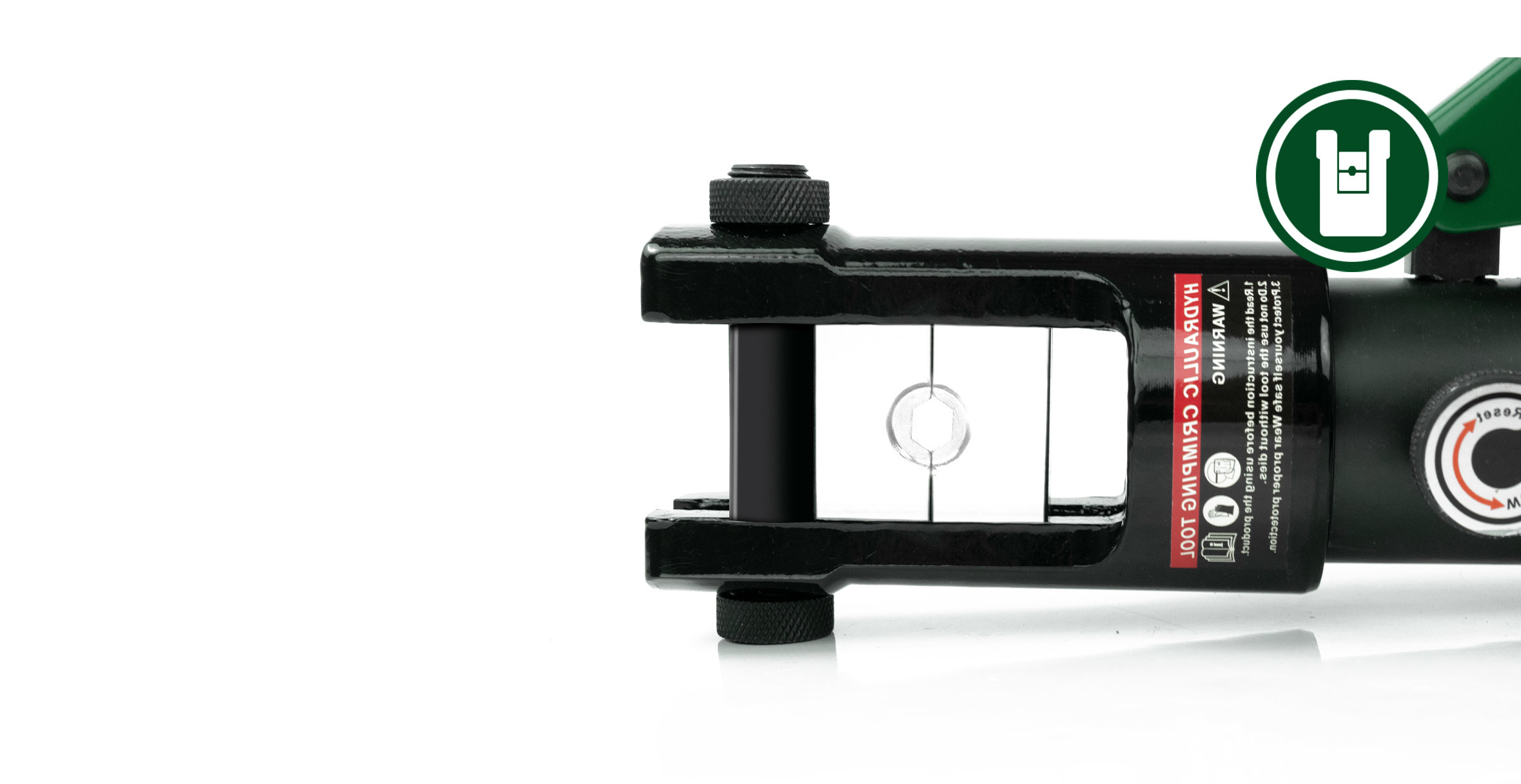

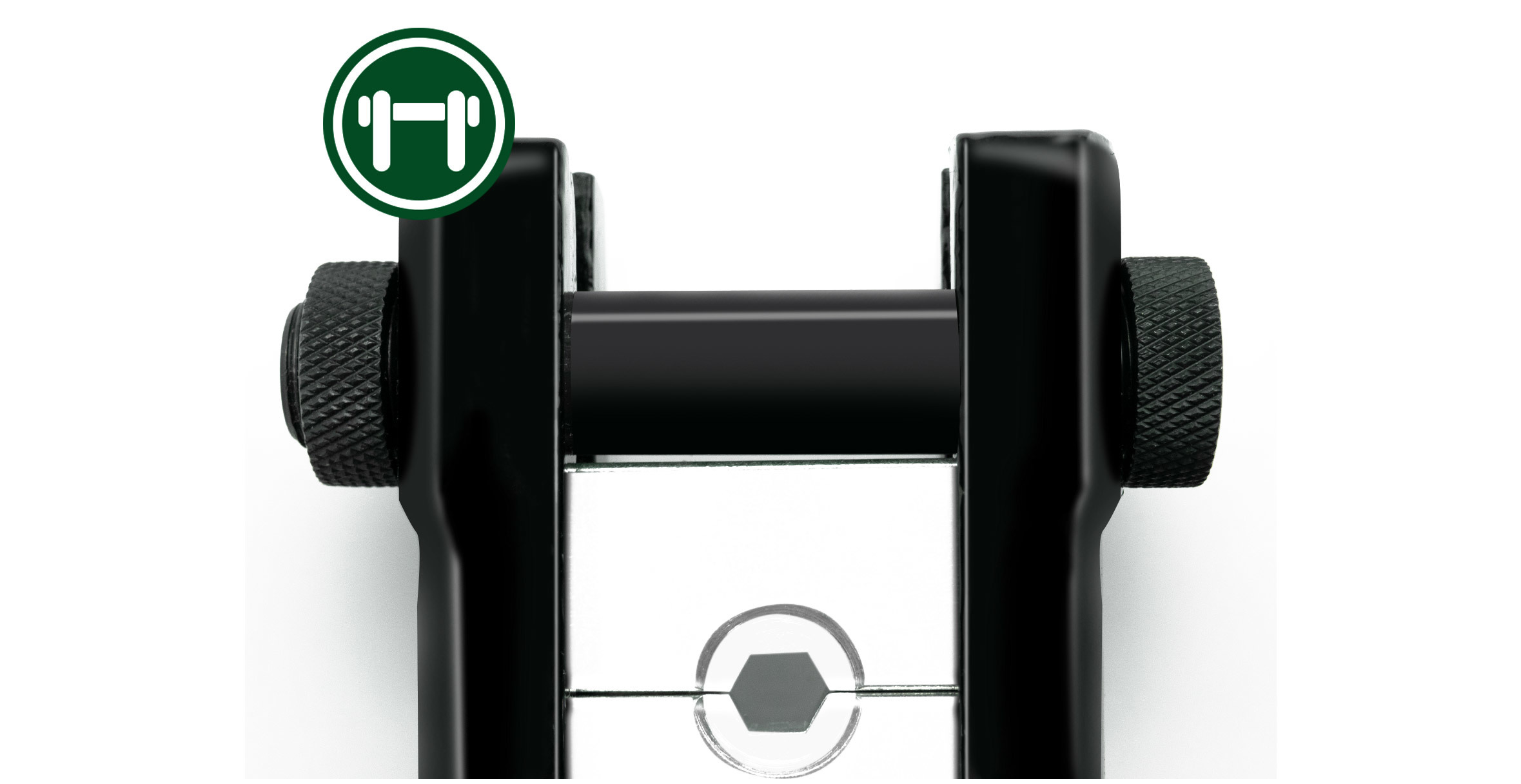

INNOVATIVE COLLET STRUCTURE
1.Increase the mold guide, the mold will not shake left and right. 2.Combined with the overall quenching technology, the pliers head is strong and will not break.
INTEGRATED PLUNGER PUMP
Precision machining ensures a flawless fit between every component. The high-pressure piston pumps, crafted from alloy steel, exhibit exceptional strength and durability.

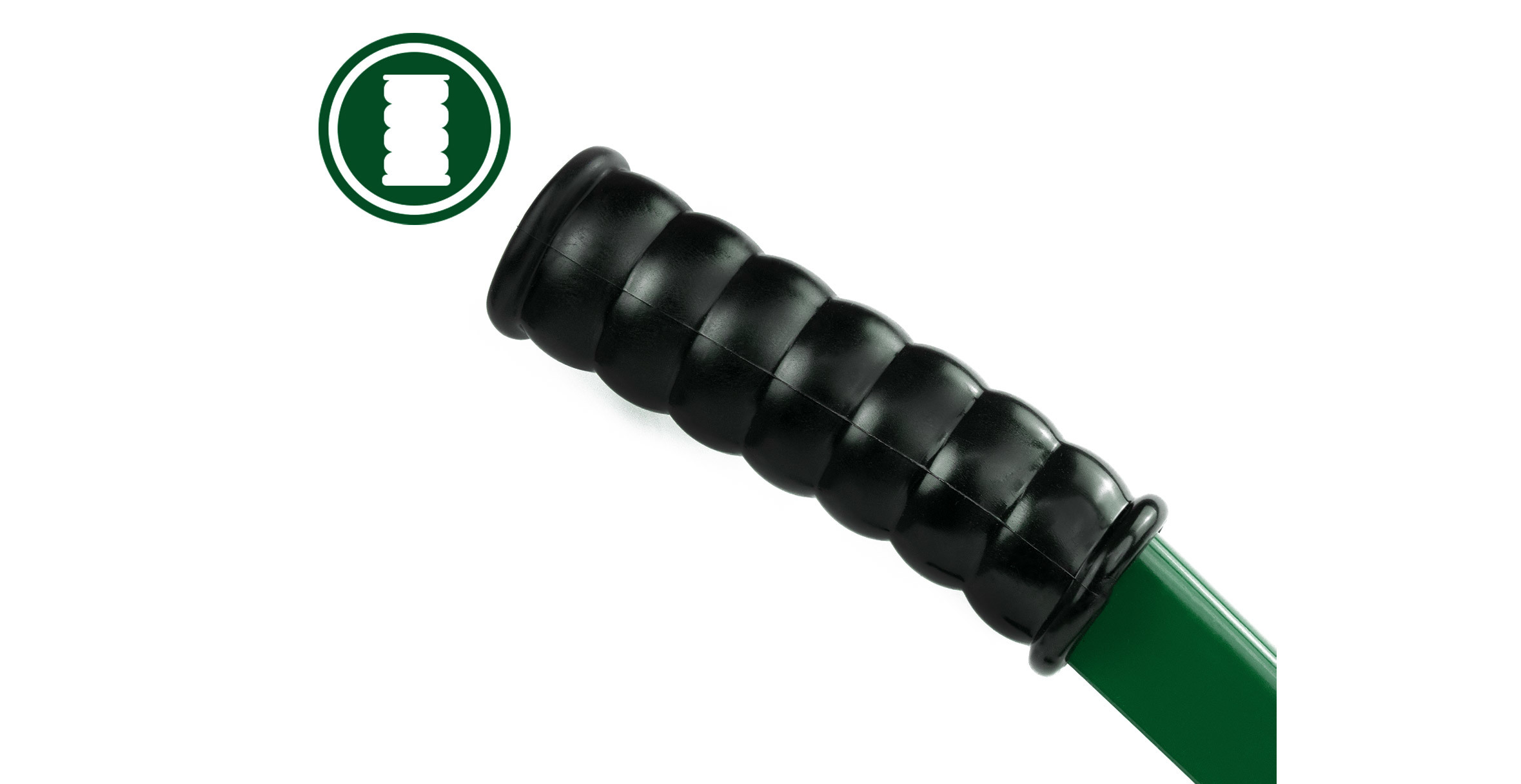

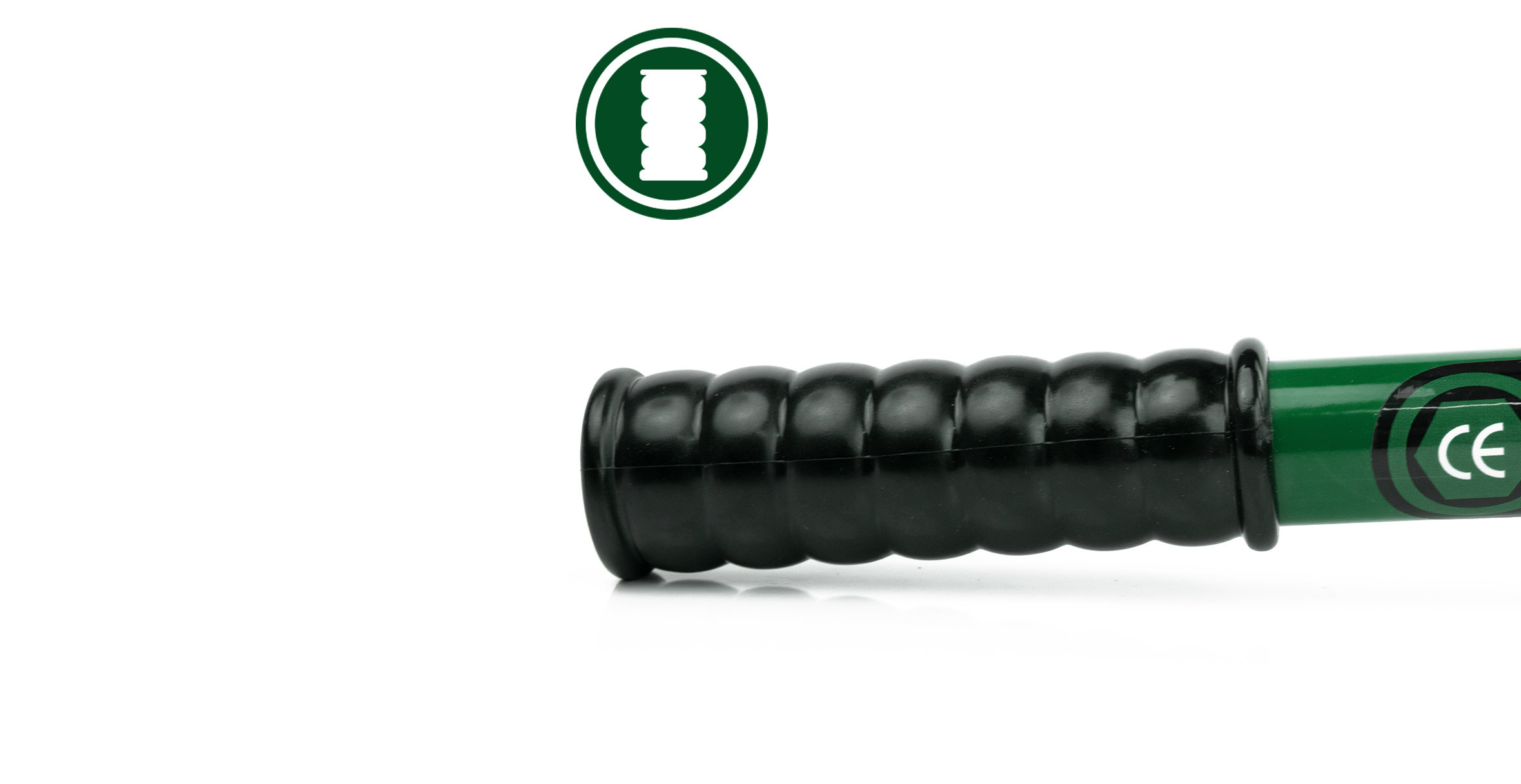

ANTI-SLIP HANDLE
Non-slip and elastic, ergonomic structure design, large crimping forceWavy handle sleeve.
STAINLESS STEEL CABLE CUTTER
This cable cutter works excellent in cutting up to 5/32" wire rope cable of all kinds. It is widely used in industrial and home applications like cable railing, fencing, bike brakes, and other
Portable switches
Flexible rotary switches
About this item
●【Secure Strength Made Effortless】 Our hand swager crimper, boasting 8 US tons of force, effortlessly secures stainless steel fittings onto cable railings and boat rigging. Sizes from 1/16" to 1/4" lock in with precision.
●【Precision Cuts, Endless Sharpness】 Our cable cutter slices through steel wires up to 5/32", including cable seals and fencing wires. After 200 cuts, it retains its sharpness for impeccable results.
●【Built to Last】 Crafted for durability, our cable cutter maintains its edge cut after cut, standing strong against wear and tear.
●【Versatile Power】 Beyond cables, our tools shine in boat fittings, fencing, and more. With an 8-ton crimping capacity and 5/32" cutting ability, versatility is at your fingertips.
●【Pro-Level Finish】 Elevate your work with expert precision. Secure fittings seamlessly and achieve clean, safe cuts that reflect dedication to excellence.
●【Quality Assurance】 Every tool is double inspected. If there is a quality problem AMZCNC promises 100% refund.
Mould
undefined
Installation Process

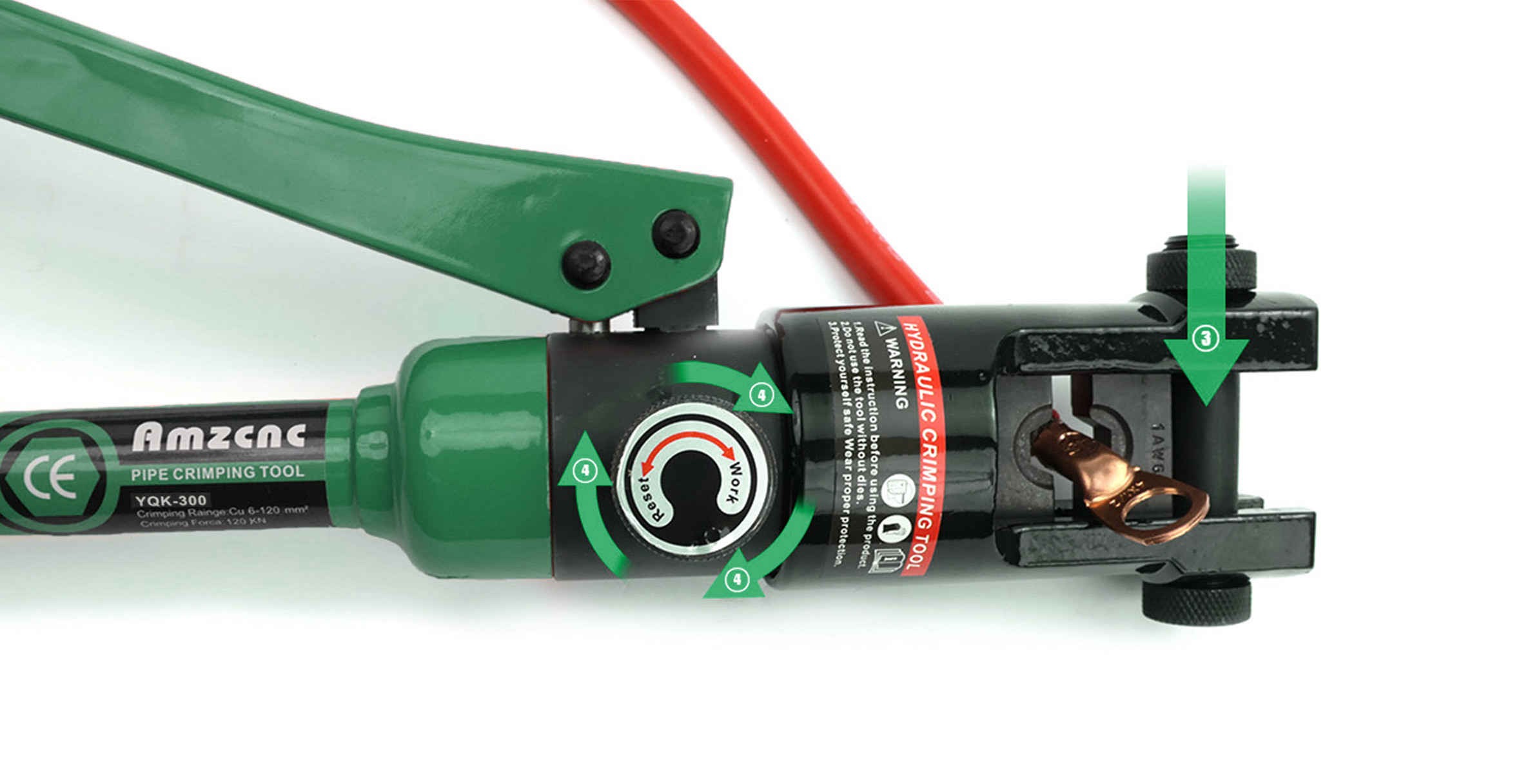

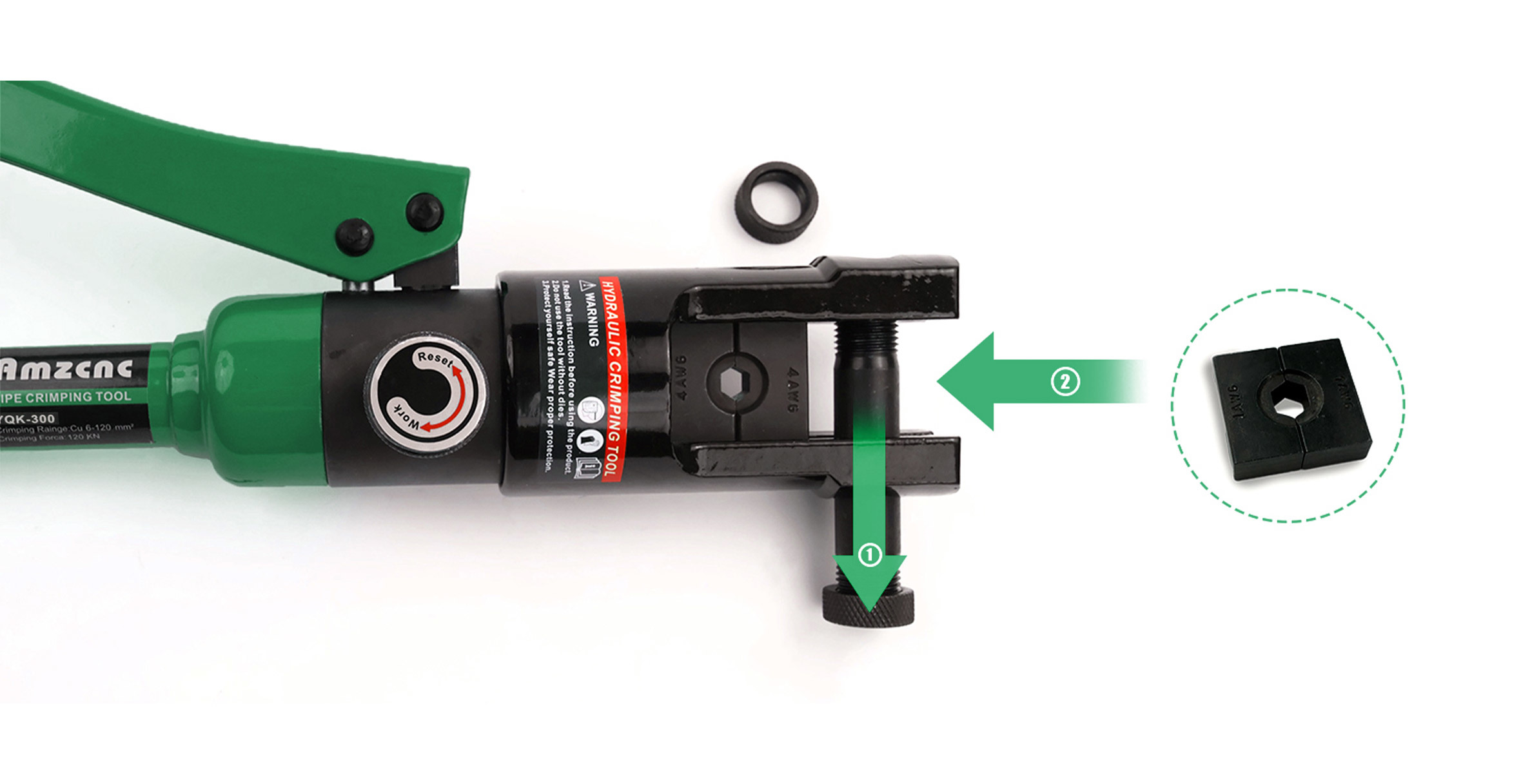

Install Crimping Die
Select the crimping die corresponding to the cable and insert it fully into the upper and lower jaws
Close Valve
Tighten valve clockwise

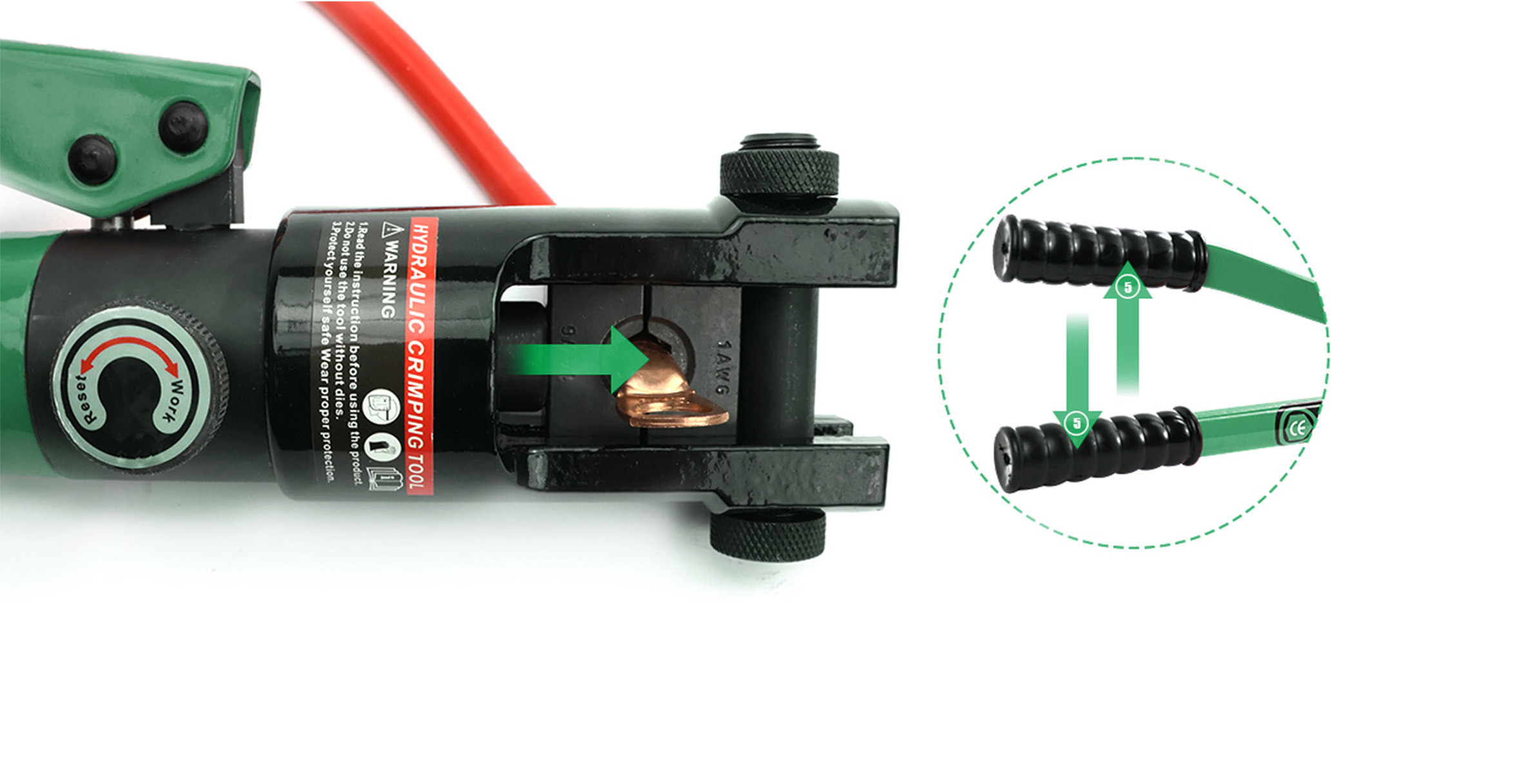

Operating Handle
Operate the handle repeatedly to drive the piston.

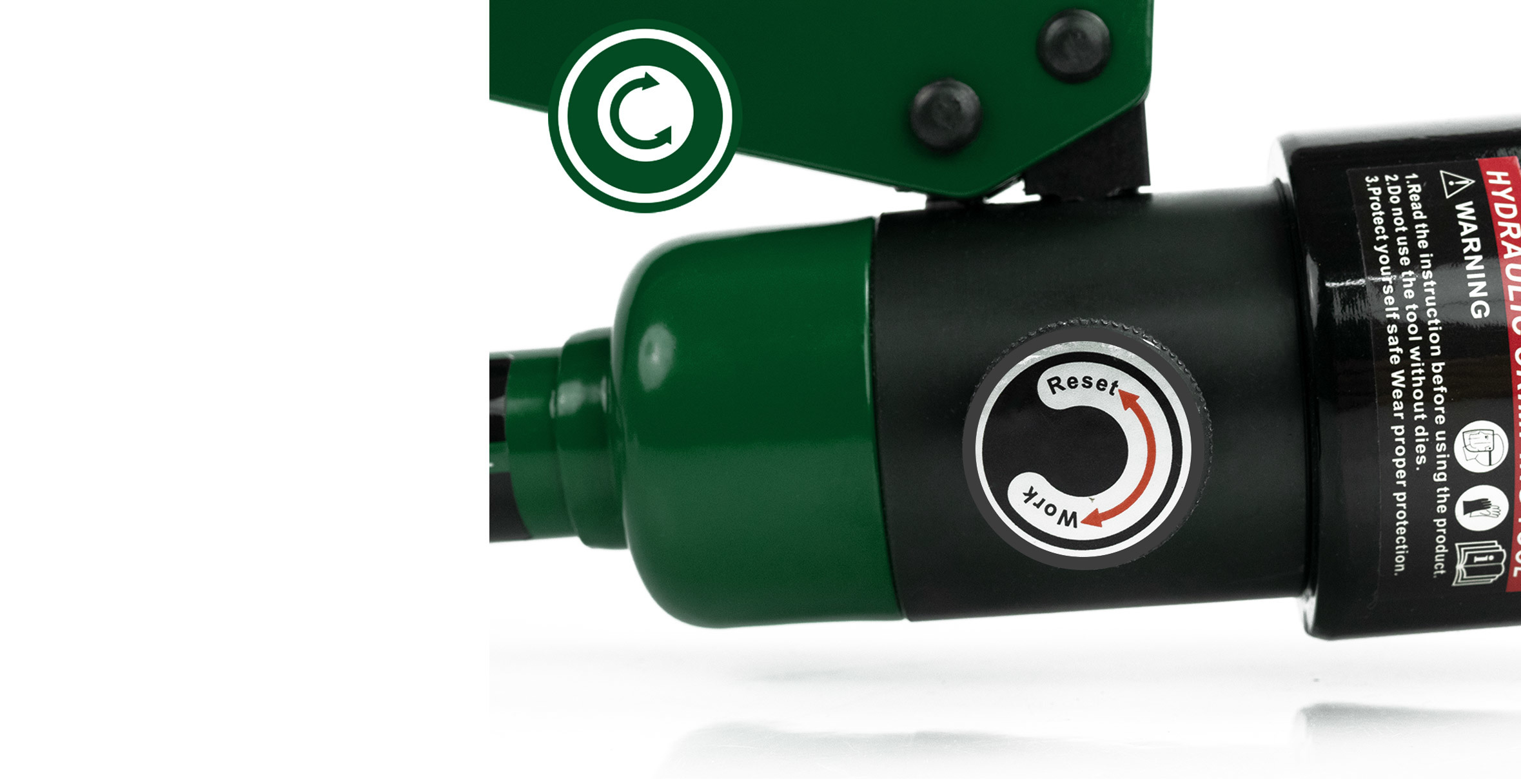

Reset
After completing the crimping, turn the valve counterclockwise.

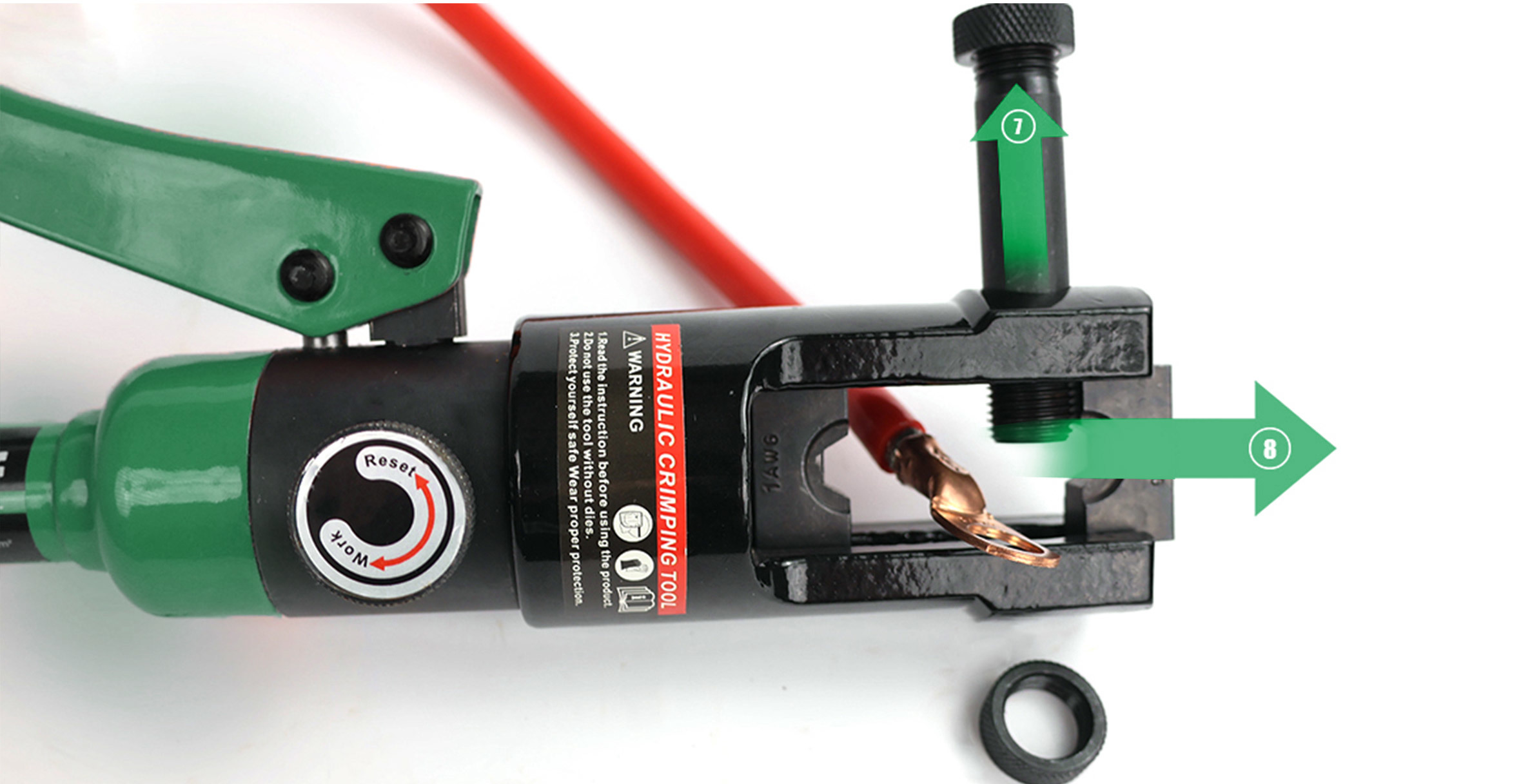

Complete crimping
ull out the latch and remove the compressed terminal.
